FMW10TR0001

Overview

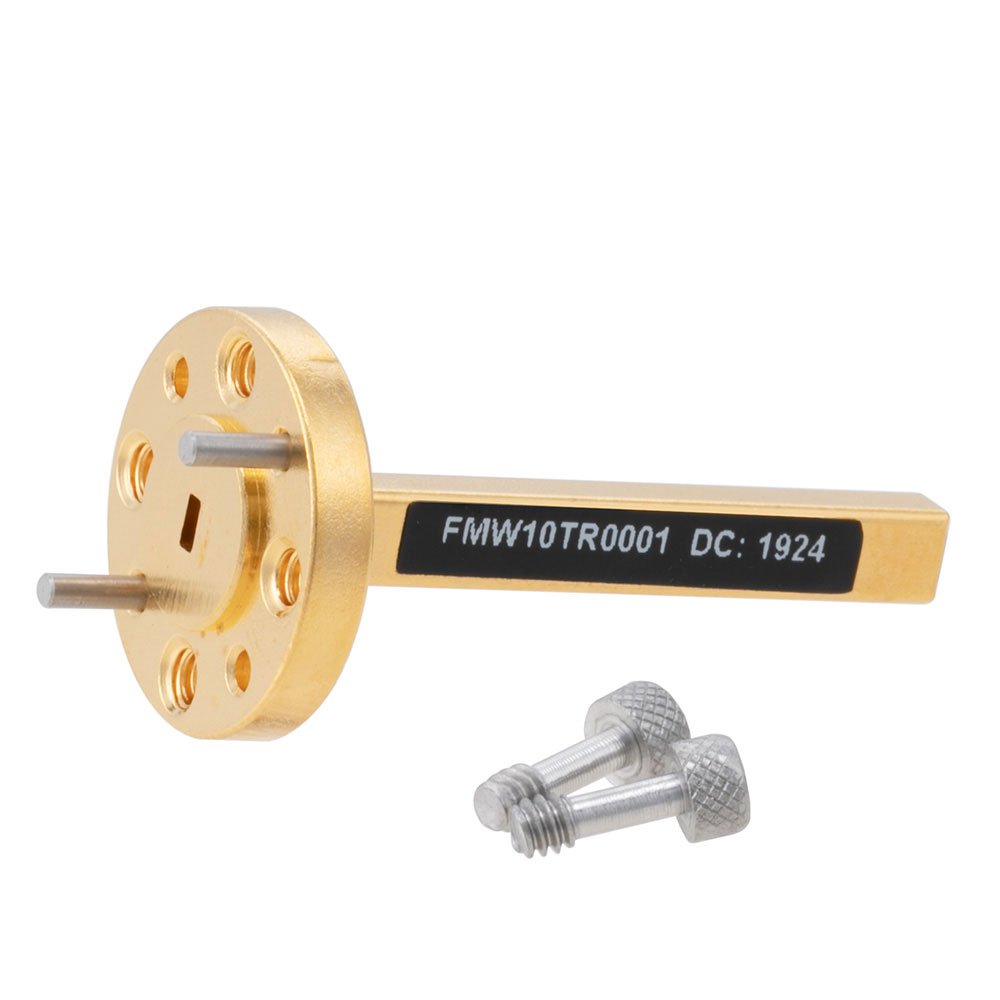

The FMW10TR0001 is an instrumentation-grade RF termination manufactured by Fairview Microwave. It utilizes a WR-10 waveguide interface and operates within a frequency range of 75 GHz to 110 GHz. The component features a gold-plated brass body with oxygen-free hard copper construction, ensuring durability in high-frequency applications. It supports a maximum power handling capacity of 0.4 Watts. This termination is designed for precise signal absorption in microwave systems requiring stable impedance matching across the specified millimeter-wave spectrum.

Feature Summary

• Instrumentation-grade performance for high-precision measurement environments
• WR-10 waveguide interface design for standardized integration
• Gold-plated brass construction with oxygen-free hard copper core

Applications

• Millimeter-wave test and measurement setups
• Waveguide system load termination
• High-frequency signal absorption in laboratory instruments

Procurement Notes

Verify that the required operating frequency aligns strictly with the 75 GHz to 110 GHz specification. Confirm that the power level does not exceed the 0.4 Watt rating to prevent damage. Ensure compatibility with WR-10 waveguide dimensions before procurement. Check for specific surface finish requirements if environmental factors are critical.

Selection Notes

Select this model when a WR-10 waveguide termination is necessary for frequencies above 75 GHz. Consider the 0.4 Watt power limit for low-power signal applications. The gold-plated brass material offers corrosion resistance suitable for general instrumentation use. Evaluate weight constraints as it is a solid metal component.

Part Context

Fairview Microwave specializes in RF, microwave, and wireless passive components. The FMW10TR0001 belongs to their line of RF terminators designed for high-frequency stability. It complements their broader portfolio of coaxial cables, adapters, and attenuators used in communication and testing infrastructure.

Replacement Considerations

No public substitute part numbers are documented for this specific model. Verify exact WR-10 dimensional tolerances if considering alternative manufacturers. Ensure any replacement matches the 75-110 GHz frequency range and 0.4 Watt power rating.
