FMWNS2000

Overview

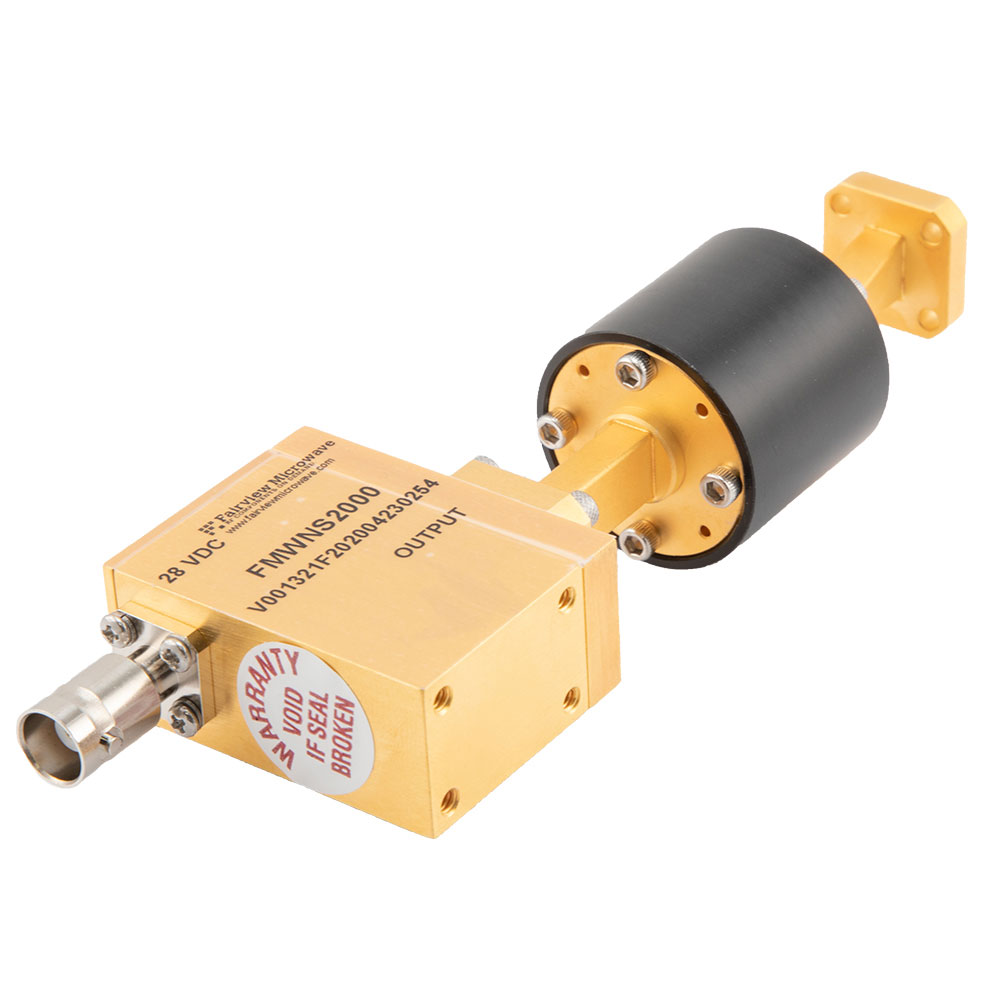

The FMWNS2000 is a noise source module manufactured by Fairview Microwave, designed for RF and microwave applications. It operates within a frequency range of 26.5 GHz to 40 GHz. The device functions as a noise generator, providing essential signal characteristics for testing and calibration purposes in high-frequency systems.

Feature Summary

• Generates calibrated noise signals across the specified millimeter-wave frequency band
• Engineered for integration into test setups requiring precise noise figure measurements

Applications

• Noise figure measurement of low-noise amplifiers
• Calibration of spectrum analyzers and vector network analyzers
• Characterization of mixer performance in high-frequency circuits

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the received unit matches the FMWNS2000 designation and includes relevant documentation regarding its operational status and calibration history. Ensure handling procedures comply with electrostatic discharge precautions typical for sensitive RF modules.

Selection Notes

Select this component when a noise source covering the 26.5 GHz to 40 GHz range is required. Consider compatibility with existing connector interfaces and power supply requirements. Evaluate whether the specific noise temperature and output power levels meet the sensitivity needs of the target measurement system.

Part Context

This part belongs to the category of RF/Microwave Devices, specifically classified as a Noise Source. It supports engineering tasks involving signal integrity analysis and receiver characterization in advanced communication and radar systems operating at millimeter-wave frequencies.
