FMWTR1005

Overview

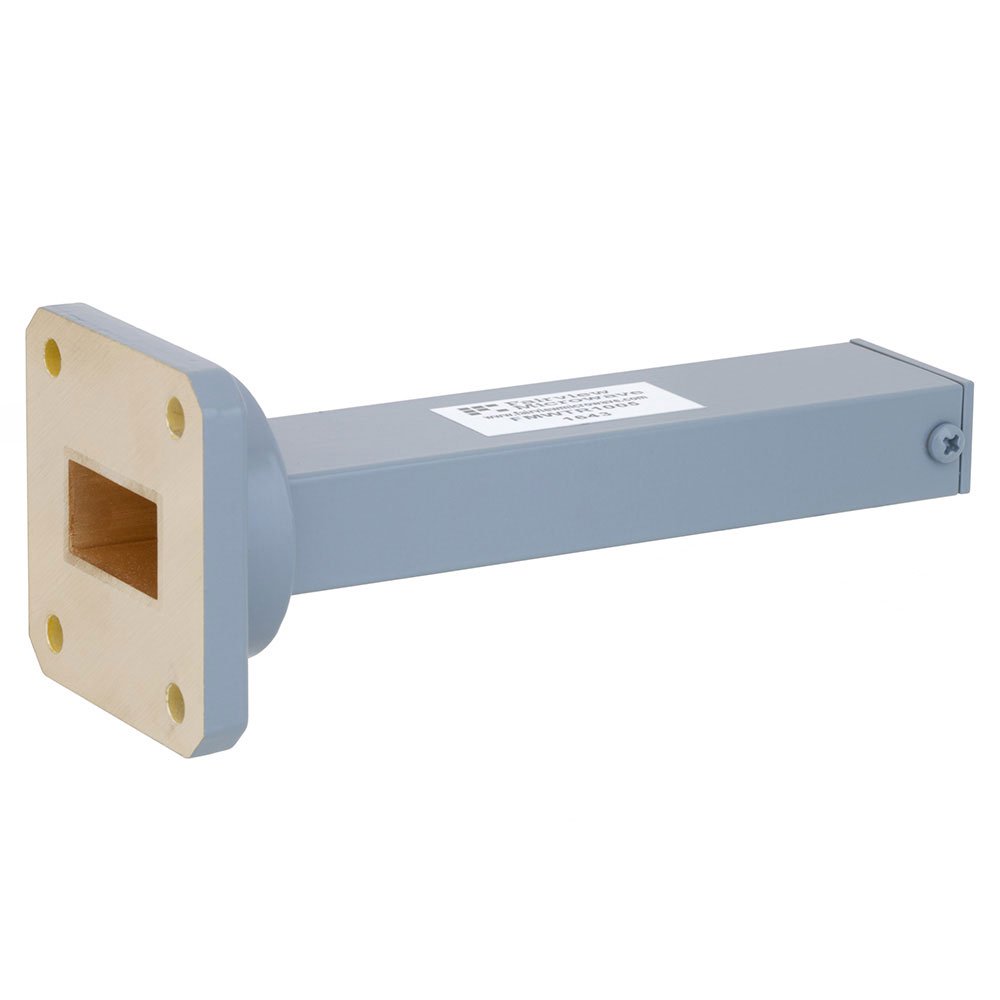

The FMWTR1005 is an RF termination module manufactured by Fairview Microwave, designed for radar applications. It operates within a frequency range of 10 GHz to 15 GHz. The unit features a brass body and has a power handling capacity of 2.5 Watts. It is packaged in bags for distribution. This component serves as a load termination for radio frequency circuits within the specified microwave band.

Feature Summary

• Operates as a fixed RF load termination for radar systems
• Constructed with a durable brass housing
• Rated for 2.5 Watt power dissipation

Applications

• Radar system testing and characterization
• RF circuit load termination
• Microwave measurement setups

Procurement Notes

Verify the specific datasheet for the FMWTR1005 to confirm connector type and physical dimensions prior to integration. Ensure the application environment does not exceed the 2.5 Watt power rating or the 15 GHz maximum frequency limit. Confirm that the brass material compatibility aligns with your thermal and corrosion requirements.

Selection Notes

Select this component when a broadband termination is required between 10 GHz and 15 GHz. Consider the 2.5 Watt power limit for continuous wave applications. The brass construction suggests suitability for general-purpose RF environments where high conductivity and heat dissipation are needed without specialized exotic materials.

Part Context

This part belongs to Fairview Microwave's RF termination product line. It is categorized under RF IC Terminators and Modules. The manufacturer specializes in passive components for wireless and test equipment applications. This specific model fills the need for a standardized load in the K-band frequency range.

Replacement Considerations

No public substitute part numbers are documented for this specific model.
