FMXP5013

Overview

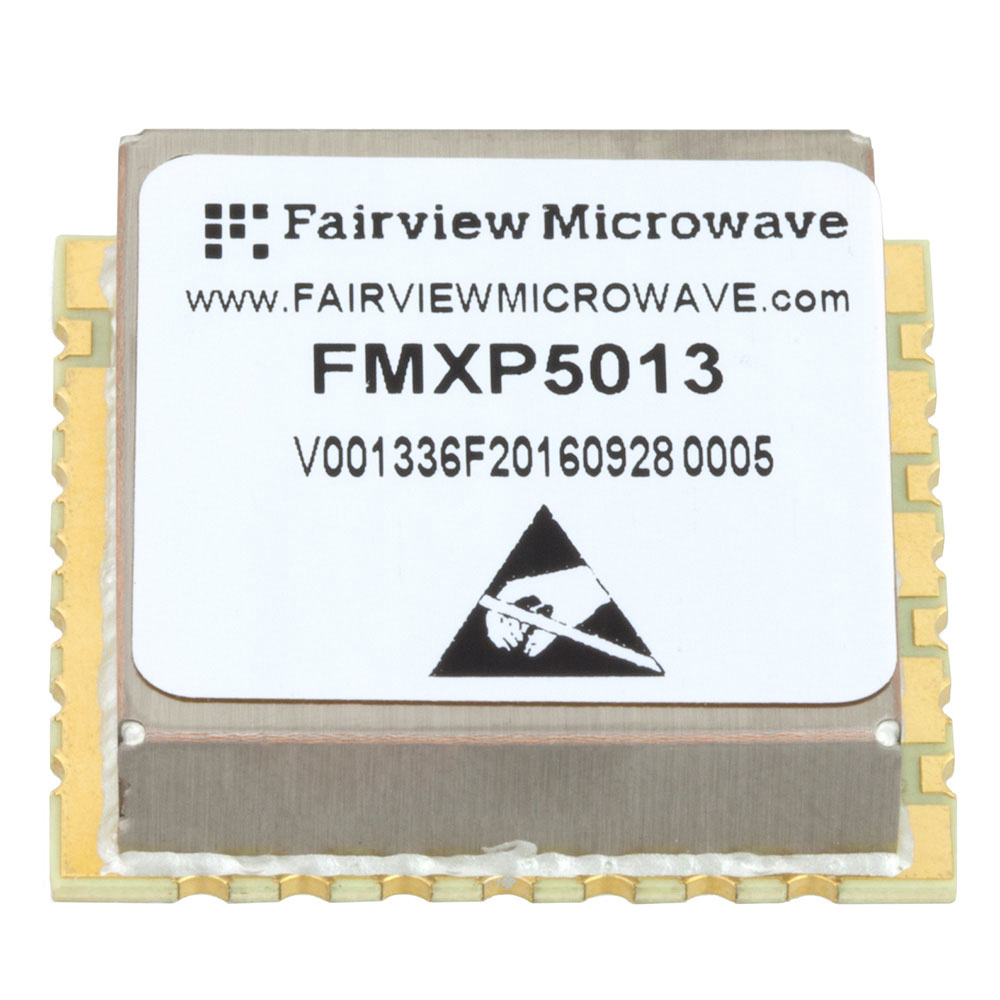

The FMXP5013 is a phase-locked oscillator manufactured by Fairview Microwave, designed for general-purpose RF applications. It operates at a frequency of 6 GHz and requires a 5V supply voltage. The component is housed in a 28-SMD surface-mount package, measuring approximately 0.9 inches. It features an external reference input of 100 MHz and achieves a phase noise performance of -90 dBc/Hz. The device supports an operating temperature range from -30°C to +70°C.

Feature Summary

• Integrates a phase-locked loop architecture for stable frequency generation
• Utilizes a compact surface-mount design for automated assembly
• Provides precise phase noise characteristics for signal integrity

Applications

• General-purpose RF signal generation systems
• Test and measurement equipment requiring stable local oscillators
• Communication subsystems needing low-phase-noise sources

Procurement Notes

Verify the specific datasheet revision and electrical parameters directly with Fairview Microwave or authorized distributors before procurement. Confirm that the 28-SMD package dimensions and pinout match your PCB layout requirements. Ensure the 5V supply voltage and 100 MHz external reference capabilities align with your system power and clock infrastructure specifications.

Selection Notes

Select this component when a 6 GHz output frequency is required with strict phase noise limits. The SMD form factor suits high-volume manufacturing environments. Verify thermal management needs within the specified -30°C to +70°C range. Compare against alternative oscillators if different frequency ranges or package types are necessary for the target application.

Part Context

This part belongs to Fairview Microwave's portfolio of RF integrated circuits and modules. It serves as a specialized oscillator solution within their broader signal generation lineup. The product is categorized under general-purpose RF ICs, distinguishing it from custom or high-frequency specialized variants offered by the manufacturer.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must evaluate cross-reference options based on identical frequency, package, and electrical specifications through independent component databases.
