FMXR1001

Overview

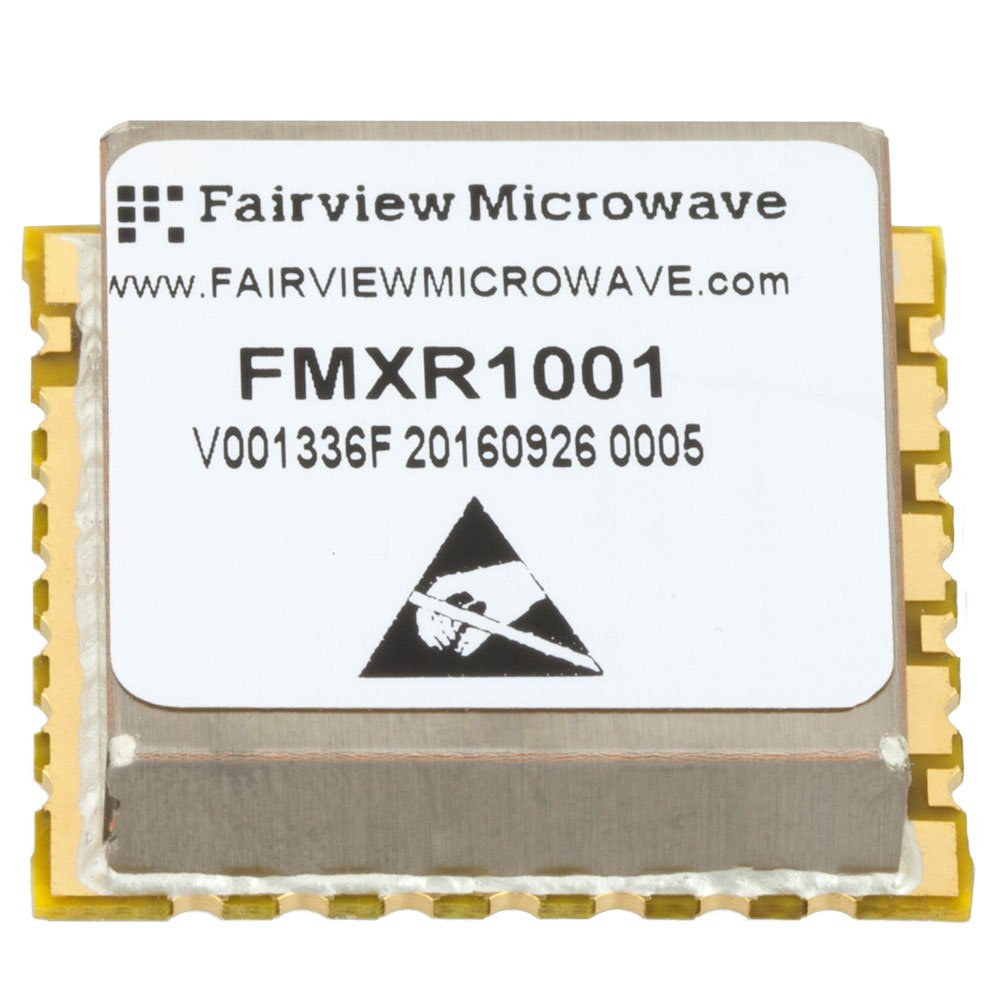

The FMXR1001 is a general-purpose RF oscillator manufactured by Fairview Microwave. It operates at a fixed frequency of 50 MHz and requires a 5V supply voltage. The component utilizes a 28-SMD surface-mount package for integration into circuit boards. Frequency stability is specified at 5 PPM, ensuring consistent signal generation for standard applications.

Feature Summary

• Provides stable 50 MHz signal generation with 5 PPM frequency stability
• Designed for general-purpose RF oscillator applications
• Utilizes a compact 28-SMD surface-mount package format

Applications

• General-purpose RF signal generation circuits
• Test and measurement equipment requiring 50 MHz reference
• Electronic systems utilizing SMD oscillator modules

Procurement Notes

Verify the specific datasheet version and manufacturer specifications before procurement to ensure compatibility with system requirements. Confirm that the 28-SMD package dimensions and pinout align with the target PCB layout. Ensure the 5V supply voltage requirement is supported by the design power rails. Check for any specific handling instructions related to the surface-mount technology used in this component.

Selection Notes

Select the FMXR1001 when a fixed 50 MHz output is required with moderate stability. The 5 PPM stability suits applications where precise frequency locking is not critical. The 28-SMD form factor facilitates automated assembly and space-constrained designs. Verify that the 5V operating voltage matches available power supplies in the target environment.

Part Context

This component belongs to the category of RF ICs and modules, specifically functioning as a standard oscillator. It serves as a frequency reference source within electronic assemblies. The product line focuses on providing reliable signal generation components for various RF and microwave applications.

Replacement Considerations

No public confirmed substitute part numbers are available.
