Product Detailed Parameters
- Description：LOW POWER ECONO
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.5V @ 15V, 100A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：100 A
- Power - Max：-
- Current - Collector Cutoff (Max)：10 µA
- Input Capacitance (Cies) @ Vce：21.7 nF @ 25 V
Download product information
Overview

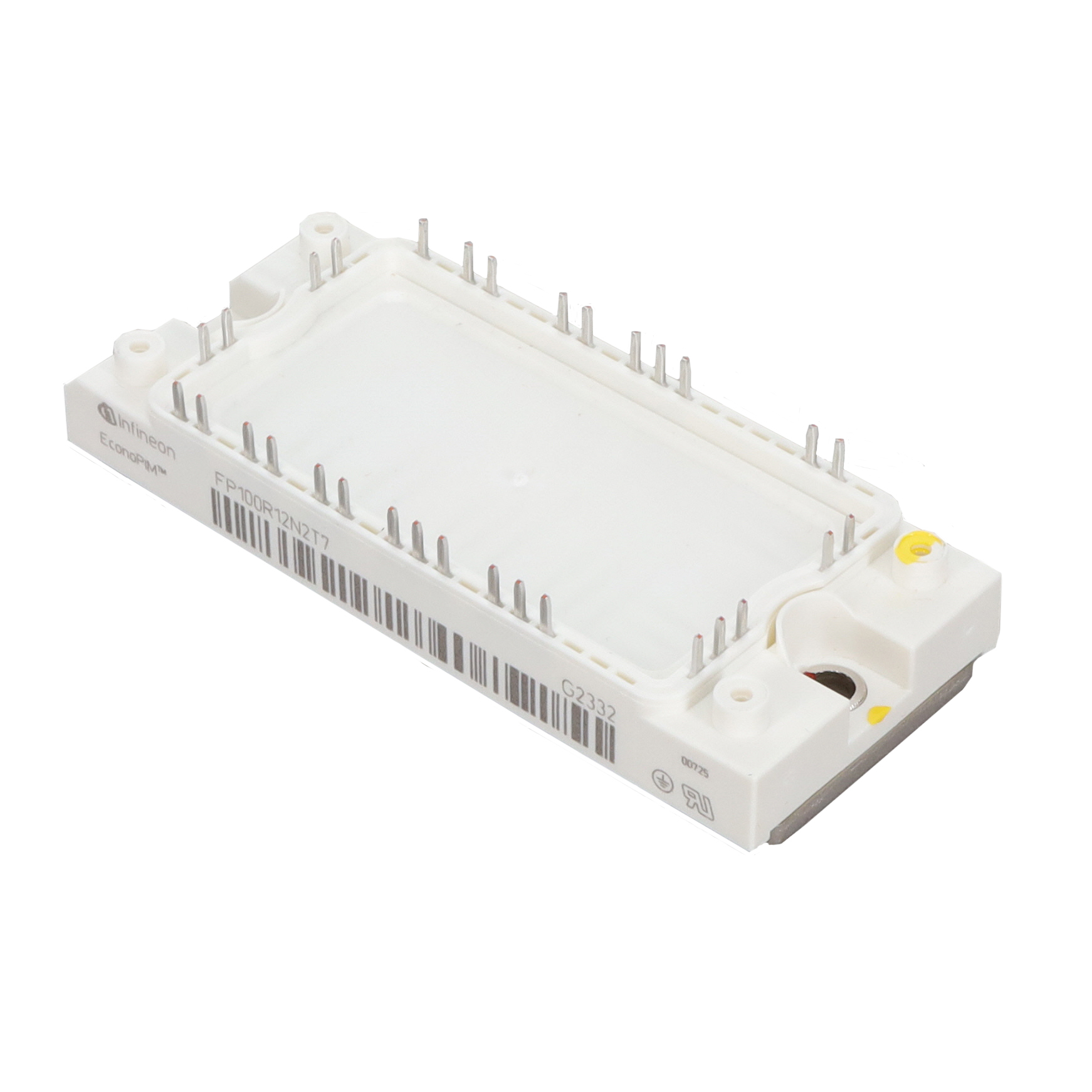

The FP100R12N2T7BPSA2 is a 3-phase inverter IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a collector-emitter voltage of 1200 V and a nominal continuous DC collector current of 100 A at a case temperature of 95 °C. The module incorporates an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C. Electrical characteristics include a typical collector-emitter saturation voltage of 1.50 V at 25 °C and a forward voltage of 1.72 V for the inverter diode. The package utilizes an Al2O3 substrate with a copper base plate and supports junction temperatures up to 175 °C.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 and Emitter Controlled 7 diodes for optimized switching performance.
- Includes an embedded NTC temperature sensor for precise thermal monitoring.
- Constructed with an Al2O3 substrate and copper base plate to ensure low thermal resistance.
- Employs solder contact technology within the EconoPIM™2 mechanical design.
Applications
- Servo drives
- Auxiliary inverters
- Motor drives
Procurement Notes
Verify the specific ordering suffix BPSA2 against official documentation to confirm exact configuration details. Ensure compliance with industrial qualification standards such as IEC 60747, 60749, and 60068 prior to integration. Confirm that application requirements align with the specified maximum operating temperatures and electrical ratings defined in the datasheet.
Selection Notes
Select this component for industrial applications requiring high power density and robust thermal management. The module is suitable for designs needing overload operation capabilities up to 175 °C junction temperature. Verify that the system layout accommodates the required mounting torque and insulation coordination parameters specified for the EconoPIM™2 form factor.
Part Context
This part belongs to the EconoPIM™2 series featuring TRENCHSTOP™ IGBT7 technology. It is designed specifically for three-phase inverter configurations. The product line emphasizes industrial reliability through comprehensive validation protocols. The module integrates both switching devices and rectifier components into a single compact unit.
Replacement Considerations
Consult official replacement lists for verified substitutes. Cross-reference technical specifications carefully when considering alternative models to ensure compatibility with existing circuit designs and thermal constraints.
