Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO3B-711
- Series：EconoPIM™ 3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：-
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：100 A
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

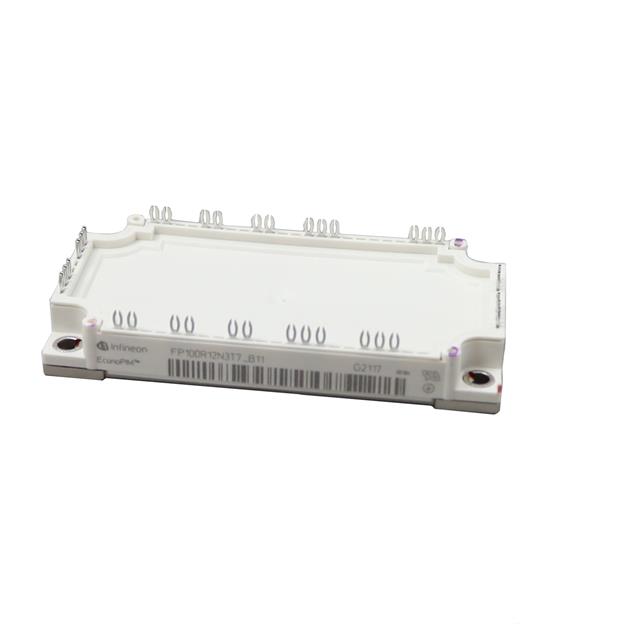

The FP100R12N3T7B11BPSA1 is a PIM module featuring TRENCHSTOP IGBT7 and Emitter Controlled 7 diodes. It has a VCES of 1200 V, nominal IC of 100 A, and peak ICRM of 200 A. The inverter IGBT VCEsat is 1.50 V at 25°C. The inverter diode VF is 1.72 V at 25°C. The braking chopper IGBT supports 50 A continuous current. The integrated NTC resistor has an R25 of 5 kΩ. Operating temperature ranges from -40°C to 175°C.
Feature Summary
- Utilizes TRENCHSTOP IGBT7 technology for high controllability and low saturation voltage.
- Incorporates Emitter Controlled 7 diodes with reduced reverse recovery charge.
- Features PressFIT connection technology for high load and thermal cycling resistance.
- Includes an integrated NTC temperature sensor for reliable thermal monitoring.
Applications
- Auxiliary inverters
- Motor drives
- Servo inverters
Procurement Notes
Verify the component against the official Infineon datasheet IFX-ABB340-001. Confirm that the specific ordering suffix matches the required technical specifications. Ensure compliance with industrial qualification standards such as IEC 60747 and IEC 60749 before integration into final designs.
Selection Notes
Select this module for applications requiring high overload capability up to 175°C junction temperature. Consider the low stray inductance of 35 nH for efficient switching. Verify that the system design accommodates the PressFIT mounting requirements and utilizes appropriate thermal interface materials for optimal heat dissipation.
Part Context
This component belongs to the EconoPIM series by Infineon Technologies. It integrates multiple power switches and diodes into a single package. The module combines IGBTs and diodes optimized for three-phase inverter and rectifier topologies. It is designed for industrial applications requiring robust thermal performance.
Replacement Considerations
Consult official Infineon documentation for qualified substitute part numbers. Ensure any replacement maintains identical electrical ratings and mechanical footprint. Verify compatibility with existing gate driver circuits and thermal management systems before implementation.
