FP10R12W1T4B29BOMA1

$30.35

Description：IGBT MODULE VCES 600V 100A
Series：EasyPIM™

SKU:fa97ddbfd226 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE VCES 600V 100A
Series：EasyPIM™
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：-
Vce(on) (Max) @ Vge, Ic：-
Input：-
NTC Thermistor：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：-
Current - Collector (Ic) (Max)：-
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

FP10R12W1T4B29BOMA1

Overview

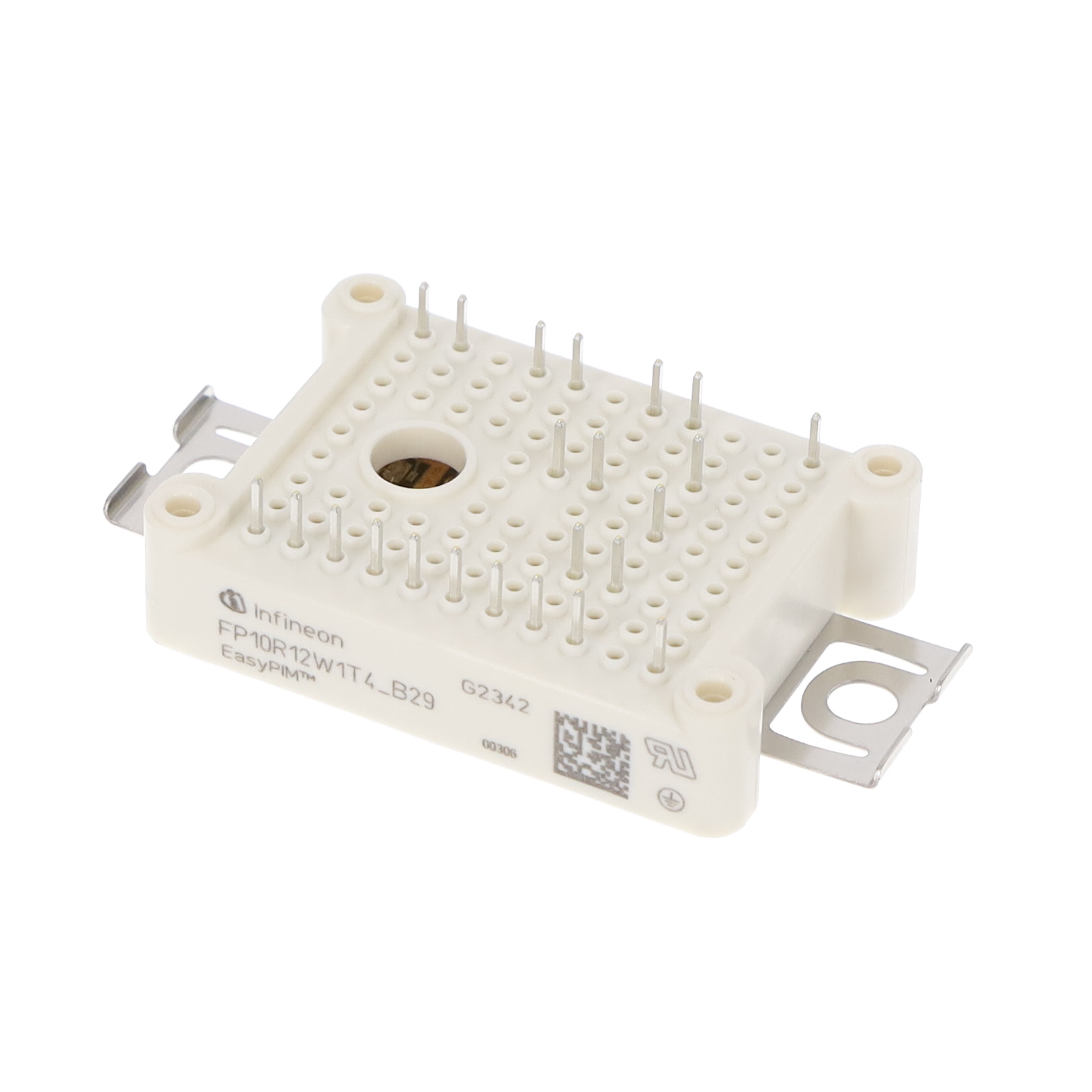

The FP10R12W1T4B29BOMA1 is an EasyPIM module integrating Trench/Fieldstop IGBT4 and Emitter Controlled Diode 4 technology with an NTC sensor. It features a 1.2 kV collector-emitter voltage, 15 A continuous collector current at 25°C, and 1.85 V saturation voltage. The unit operates between -40°C and +150°C, dissipates 20 mW power, and utilizes a press-fit package.

Feature Summary

Integrates Trench/Fieldstop IGBT4 and Emitter Controlled Diode 4 for low switching losses
Includes built-in NTC sensor for thermal monitoring
Features positive temperature coefficient for VCEsat

Applications

Three-phase inverter circuits
Motor drive systems
Power supply units

Procurement Notes

Verify the specific B29 suffix against official Infineon documentation to confirm exact electrical tolerances and pinout compatibility. Ensure the press-fit mounting style aligns with the target PCB design requirements before finalizing procurement orders.

Selection Notes

Select this component for applications requiring integrated thermal sensing and low switching losses. The press-fit installation method necessitates compatible board structures. Evaluate the 15 A current rating against peak load demands to ensure adequate performance margins.

Part Context

This part belongs to the EasyPIM family, combining power devices and gate drivers into a single compact module. It utilizes Infineon's Trenchstop IGBT4 technology to optimize efficiency and reduce system size compared to discrete solutions.
