Product Detailed Parameters
- Description：IGBT MODULE 1200V 150A
- Series：EconoPIM™ 3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 150A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：-
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：9.35 nF @ 25 V
Download product information
Overview

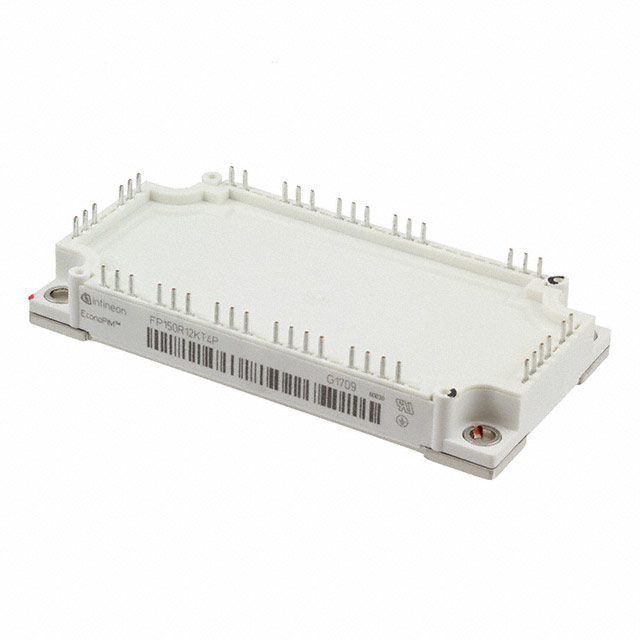

The FP150R12KT4BPSA1 is a silicon-based IGBT module from Infineon Technologies, belonging to the Trenchstop IGBT4 series. It features an EconoPIM 3 package configuration designed for three-phase inverter applications. The device supports a maximum collector-emitter voltage of 1.2 kV and delivers a continuous collector current of 150 A at 25°C. Key electrical parameters include a collector-emitter saturation voltage of 1.75 V and a gate-emitter leakage current of 100 nA. The module operates within a temperature range of -40°C to +150°C and utilizes through-hole mounting.
Feature Summary
- Integrates Trenchstop IGBT4 technology for optimized switching performance
- Utilizes EconoPIM 3 packaging for compact integration
- Designed specifically for three-phase inverter topologies
Applications
- Three-phase input rectifier circuits
- Industrial motor drive systems
- Power conversion units requiring high current handling
Procurement Notes
Verify the specific ordering suffix against official documentation to confirm exact variant specifications. Ensure compatibility with required thermal management solutions given the 150 A current rating. Confirm RoHS compliance status through manufacturer datasheets prior to final procurement decisions.
Selection Notes
Select this component when designing three-phase inverter systems requiring 1.2 kV blocking capability and 150 A continuous current. Consider the EconoPIM 3 form factor for space-constrained layouts. Evaluate thermal resistance requirements based on the specified operating temperature limits and saturation voltage characteristics.
Part Context
This module is part of Infineon's Trenchstop IGBT4 family, which combines advanced trench gate technology with field-stop structures. The FP150R12KT4BPSA1 variant specifically targets high-power industrial applications where reliability and efficiency are critical. It shares architectural similarities with other EconoPIM devices but offers distinct current and voltage ratings tailored for medium-to-high power inverters.
Replacement Considerations
Direct substitutes may include FP150R12KT4 or FP150R12KT4P, provided pinout and thermal interface compatibility are verified. Alternative modules from the same Trenchstop IGBT4 series should be evaluated for equivalent voltage and current ratings.
