Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO3B-711
- Series：EconoPIM™ 3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：-
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO3
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：-
- Current - Collector Cutoff (Max)：12 µA
- Input Capacitance (Cies) @ Vce：30.1 nF @ 25 V
Download product information
Overview

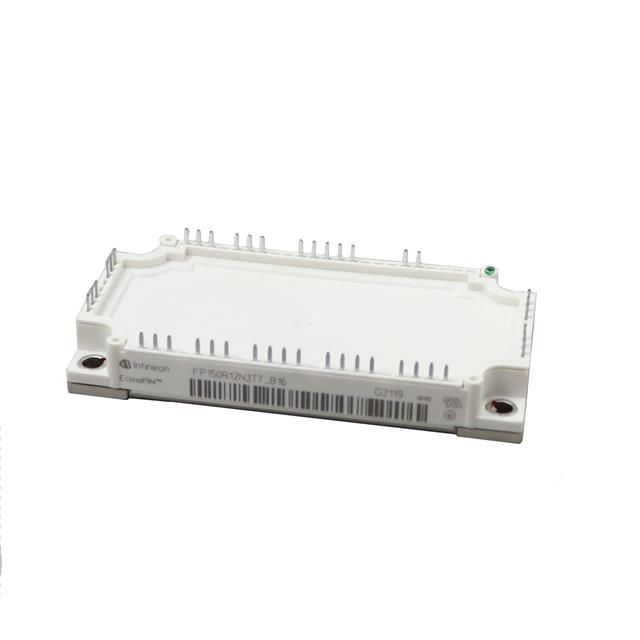

The FP150R12N3T7B16BPSA1 is an EconoPIM™3 module utilizing TRENCHSTOP™ IGBT7 technology. It integrates a three-phase inverter, rectifier, and brake-chopper with emitter-controlled diodes and an NTC thermistor. Key electrical parameters include a collector-emitter voltage (VCES) of 1200 V, continuous DC collector current (ICDC) of 150 A at TC=80°C, and repetitive peak current (ICRM) of 300 A. The typical saturation voltage (VCEsat) is 1.55 V at 25°C. Operating temperature ranges from -40°C to +175°C for switching conditions.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 technology for low saturation voltage and high short-circuit robustness.
- Includes an integrated NTC temperature sensor for precise thermal monitoring.
- Features solder contact technology with a copper base plate and Al2O3 substrate for efficient heat dissipation.
Applications
- Auxiliary inverters
- Motor drives
- Servo drives
Procurement Notes
Verify the specific B16 suffix against official Infineon documentation to confirm mechanical or material variations. Ensure compliance with industrial qualification standards such as IEC 60747 and IEC 60068 before integration into final designs.
Selection Notes
Select this module for applications requiring high current density and robust overload capability up to 175°C. Consider the 1200 V rating and 150 A continuous current capacity when designing thermal management systems for motor drive and inverter topologies.
Part Context
This component belongs to the Infineon EconoPIM™3 series, designed for compact power conversion solutions. It combines multiple semiconductor functions into a single package, reducing system footprint while maintaining high performance through advanced silicon generation technologies.
Replacement Considerations
Consult official Infineon substitution guides for verified alternatives. Generic replacements may not match the specific pinout, thermal characteristics, or electrical ratings of the EconoPIM™3 form factor.
FAQ
What is the maximum operating junction temperature?
The module supports operation up to 175°C under switching conditions, allowing for overload operation.
Does the module include thermal protection components?
Yes, it features an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C for temperature monitoring.
What is the isolation test voltage?
The module has an isolation test voltage (VISOL) of 2.5 kV RMS for 1 minute at 50 Hz.
