Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO3-3
- Series：EconoPIM™ 3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.55V @ 15V, 150A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO3
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：-
- Current - Collector Cutoff (Max)：12 µA
- Input Capacitance (Cies) @ Vce：30.1 nF @ 25 V
Download product information
Overview

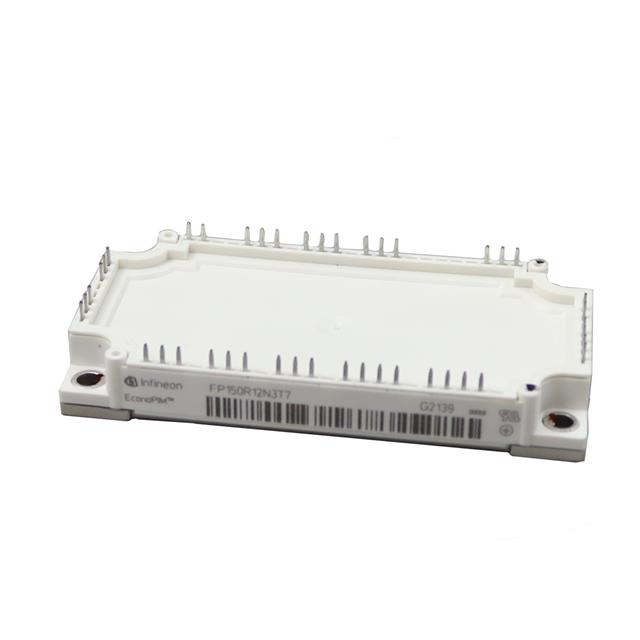

The FP150R12N3T7BPSA1 is a PIM IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a 1200 V collector-emitter voltage (VCES) and a nominal continuous DC collector current of 150 A at 25°C. The typical saturation voltage (VCE,sat) is 1.55 V at 25°C. The module operates within a junction temperature range of -40°C to +175°C. It includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C. The package utilizes solder pin technology with a copper base plate.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 and emitter-controlled diodes for high controllability and low on-state voltage.
- Includes an embedded NTC temperature sensor for precise thermal monitoring.
- Constructed with a copper base plate and Al2O3 substrate to ensure low thermal resistance.
- Designed for overload operation up to the maximum junction temperature of 175°C.
Applications
- Auxiliary inverters
- Motor drives
- Servo drives
Procurement Notes
Verify the specific ordering suffix BPSA1 against official documentation to confirm terminal configuration and packaging details. Ensure compliance with industrial qualification standards such as IEC 60747 and IEC 60068. Confirm that the application environment supports the specified operating temperature range and insulation requirements.
Selection Notes
Select this component for applications requiring robust short-circuit ruggedness and high electrical performance in variable speed drives. Consider the internal gate resistor values and switching energy losses when designing the driver circuitry. Verify that the heatsink mounting torque adheres to the application notes to maintain thermal performance and mechanical integrity.
Part Context
This module belongs to the EconoPIM™3 series, designed specifically for three-phase input rectifier and inverter topologies. It represents the seventh generation of TRENCHSTOP™ technology, offering improved efficiency compared to previous generations. The series is targeted at industrial applications demanding high reliability and compact form factors.
Replacement Considerations
Consult official substitution lists for compatible modules within the EconoPIM™3 family or other IGBT7-based PIMs. Verify that any alternative part matches the required voltage rating, current capacity, and physical dimensions before implementation.
FAQ
What is the maximum repetitive peak collector current?
The maximum repetitive peak collector current (ICRM) is 300 A, limited by the operating junction temperature.
Does the module include a brake-chopper stage?
Yes, the module integrates an IGBT and diode configured for a brake-chopper application, rated for 100 A continuous current.
What is the isolation test voltage?
The isolation test voltage (VISOL) is 2.5 kV RMS at 50 Hz for 1 minute.
