FP150R12N3T7PB11BPSA1

Overview

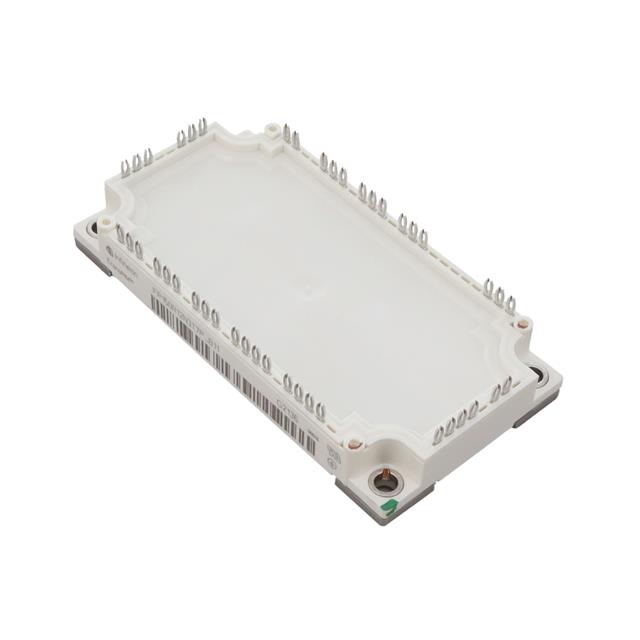

The FP150R12N3T7P_B11 is an EconoPIM™3 module integrating TRENCHSTOP™ IGBT7 and emitter controlled 7 diodes. It features a 1200 V collector-emitter voltage (VCES) and a nominal continuous DC collector current of 150 A at 25 °C, with a repetitive peak current of 300 A. The inverter IGBT exhibits a typical saturation voltage of 1.55 V at 25 °C. The module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C. It utilizes PressFIT contact technology and comes with pre-applied thermal interface material.

Feature Summary

• Integrates seventh-generation TRENCHSTOP™ IGBT7 and emitter controlled 7 diode technologies for optimized switching performance.
• Incorporates PressFIT contact technology to eliminate soldering requirements during assembly.
• Includes an integrated NTC temperature sensor for precise junction temperature monitoring.
• Features a copper base plate with an Al2O3 substrate and low thermal resistance.

Applications

• Auxiliary inverters
• Motor drives
• Servo drives

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm mechanical variations or packaging details. Ensure compatibility with the required mounting torque specifications and application notes regarding storage conditions for modules containing thermal interface material before procurement.

Selection Notes

Select this component for industrial applications requiring high overload capability up to 175 °C. Confirm that the system design accommodates the specified stray inductance and matches the recommended gate resistor values for optimal switching times and energy loss characteristics under the intended operating conditions.

Part Context

This part belongs to the EconoPIM™3 series from Infineon Technologies, designed for three-phase power conversion. It combines rectifier, inverter, and brake-chopper functions within a single compact package, utilizing advanced silicon technology to reduce overall system size and improve efficiency in medium-power drive applications.

Replacement Considerations

Consult official Infineon cross-reference lists for verified substitutes. Ensure any replacement maintains identical electrical ratings, thermal resistance values, and mechanical footprint dimensions to guarantee direct compatibility with existing heatsink and PCB layouts.

FAQ

What is the maximum operating junction temperature for this module?

The maximum operating junction temperature (Tvj op) is 175 °C. Operation above 150 °C is permitted under overload conditions as specified in the relevant application notes.

Does the module include thermal interface material?

Yes, the module comes with pre-applied thermal interface material (TIM). Specific handling instructions for storage and shipment are detailed in application note AN2012-07.

What is the isolation test voltage rating?

The isolation test voltage (VISOL) is 2.5 kV RMS at 50 Hz for a duration of 1 minute, providing basic insulation according to class 1 standards.
