Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2C-311
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.45V @ 15V, 10A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2C
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：25 A
- Power - Max：105 W
- Current - Collector Cutoff (Max)：5 mA
- Input Capacitance (Cies) @ Vce：1.1 nF @ 25 V
Download product information
Overview

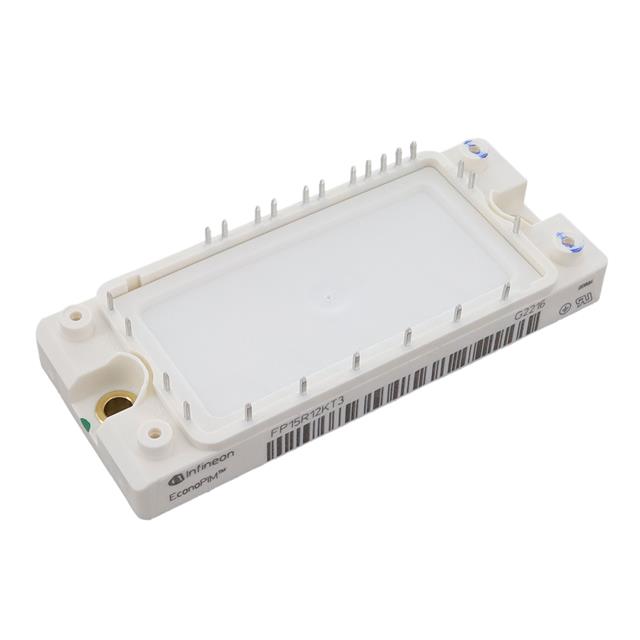

The FP15R12KT3BPSA1 is a three-phase inverter IGBT module from Infineon Technologies. It integrates an inverter leg, a brake-chopper leg, and a rectifier diode bridge. The inverter IGBTs support a collector-emitter voltage of 1200 V with a continuous DC current of 15 A at 80°C case temperature. The brake-chopper IGBT provides 10 A continuous current. The integrated rectifier diodes handle up to 60 A RMS. Key electrical parameters include a maximum saturation voltage of 2.15 V for the inverter IGBTs and 2.45 V for the brake-chopper IGBTs. The module features a 5 kΩ NTC thermistor for thermal monitoring.
Feature Summary
- Integrates a complete three-phase power stage including inverter switches, brake-chopper switch, and rectifier diodes within a single package.
- Includes an internal NTC thermistor for precise junction temperature monitoring and thermal management.
- Designed with a copper baseplate and aluminum oxide internal insulation for effective heat dissipation and electrical isolation.
Applications
- Three-phase motor drives and variable frequency drives (VFDs)
- Induction heating systems
- Uninterruptible power supplies (UPS)
Procurement Notes
Verify component authenticity through authorized Infineon distributors or certified supply chain partners. Request original manufacturer datasheets and test reports to confirm compliance with specified electrical ratings. Ensure proper handling procedures are followed during storage and installation to prevent electrostatic discharge damage.
Selection Notes
Select this module for applications requiring a compact three-phase solution with integrated braking capability. Confirm that the required DC bus voltage does not exceed 1200 V and that the thermal design accommodates the specified junction-to-case thermal resistance values. Verify gate drive requirements align with the recommended ±15 V operating range.
Part Context
This component belongs to the FP series of IGBT modules manufactured by Infineon Technologies. It utilizes Trenchstop technology to optimize switching losses and conduction characteristics. The module is designed for high reliability in industrial power conversion environments.
Replacement Considerations
Consult official Infineon documentation for verified cross-references. No direct substitute part numbers are confirmed in the provided source material.
