Product Detailed Parameters
- Description：IGBT MOD 1200V 30A 20MW
- Series：EasyPIM™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.25V @ 15V, 15A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：30 A
- Power - Max：-
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：890 pF @ 25 V
Download product information
Overview

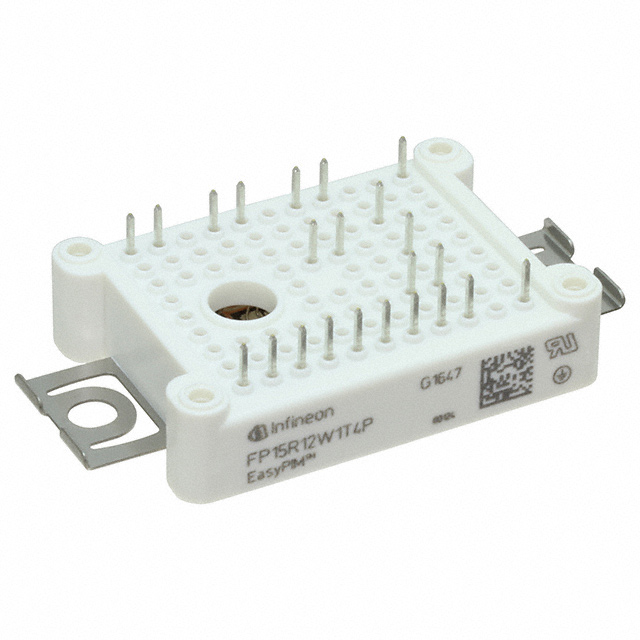

The FP15R12W1T4PBPSA1 is an EasyPIM module integrating Trench/Fieldstop IGBT4 and Emitter Controlled 4 diodes with a pre-applied thermal interface material. It features a 3-phase inverter configuration with a collector-emitter voltage of 1200 V and a continuous DC collector current of 15 A at 25°C. The saturation voltage is 1.85 V at 25°C, rising to 2.25 V at 150°C. Operating temperature ranges from -40°C to +150°C. The unit weighs 24 g and includes an integrated NTC thermistor rated at 5 kΩ.
Feature Summary
- Integrates Trench/Fieldstop IGBT4 technology for low switching losses
- Includes pre-applied thermal interface material for simplified assembly
- Features rugged mounting via integrated clamps and Al2O3 substrate
- Incorporates an NTC thermistor for precise temperature monitoring
Applications
- Auxiliary inverters
- Air conditioning systems
- Motor drives
Procurement Notes
Verify the specific ordering suffix against official Infineon documentation to confirm the inclusion of pre-applied thermal interface material. Ensure compatibility with standard gate drive requirements and verify that the maximum baseplate operating temperature aligns with the intended cooling system design before finalizing procurement.
Selection Notes
Select this component for applications requiring compact three-phase power conversion with integrated thermal management. Consider the 1200 V rating and 15 A continuous current capability when sizing for auxiliary or motor drive loads. Evaluate the thermal resistance values provided in the datasheet to ensure adequate heat dissipation within the specified junction temperature limits.
Part Context
This part belongs to the EasyPIM family utilizing TRENCHSTOP IGBT4 technology. It combines inverter and brake-chopper functions into a single package. The series is designed for industrial applications requiring high reliability and efficient switching performance in a compact form factor.
Replacement Considerations
Consult official Infineon cross-reference guides for verified substitutes. Generic replacements may lack the integrated NTC or pre-applied TIM characteristics.
