Product Detailed Parameters
- Description：LOW POWER EASY AG-EASY1B-2
- Series：EasyPIM™
- Mfr：Infineon Technologies
- Package：Bulk,Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：-
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-EASY1B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：15 A
- Power - Max：-
- Current - Collector Cutoff (Max)：3 µA
- Input Capacitance (Cies) @ Vce：2.82 nF @ 25 V
Download product information
Overview

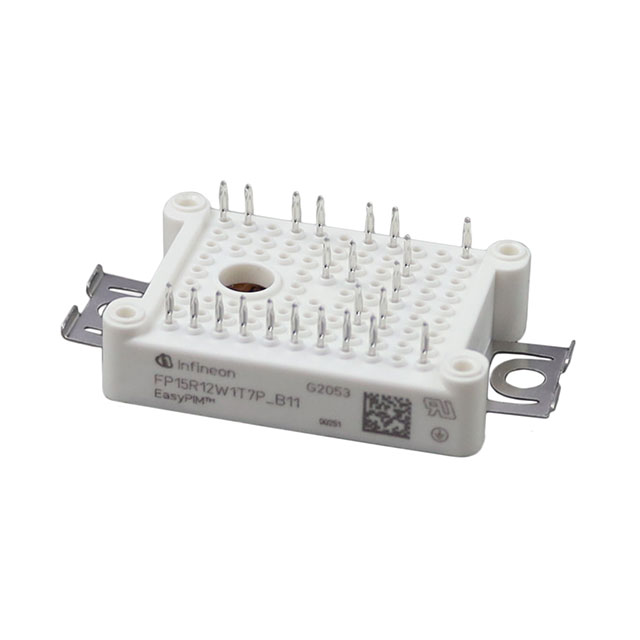

The FP15R12W1T7P_B11 is a three-phase inverter IGBT module from Infineon's EasyPIM series, utilizing TRENCHSTOP IGBT7 technology. It features a 1200 V collector-emitter voltage and a continuous DC collector current of 15 A at 175 °C junction temperature. The module integrates emitter-controlled diodes with a forward voltage of 1.72 V at 25 °C. Electrical isolation is rated at 2.5 kV AC for one minute. Thermal management includes pre-applied thermal interface material and PressFIT contact technology.
Feature Summary
- Integrates TRENCHSTOP IGBT7 and Emitter Controlled 7 diode technologies for optimized switching performance.
- Features PressFIT contact technology to eliminate wire bonding and improve mechanical robustness.
- Includes an integrated NTC thermistor for precise internal temperature monitoring.
- Utilizes pre-applied thermal interface material on the baseplate to reduce assembly complexity.
Applications
- Air conditioning systems
- Auxiliary inverters
- Motor drives
Procurement Notes
Verify the specific ordering suffix against official documentation to confirm package type and terminal configuration. Ensure that the procurement channel provides valid traceability documents. Confirm compliance with industrial qualification standards such as IEC 60747 prior to integration into final designs.
Selection Notes
Select this component for applications requiring high power density and reliable operation up to 175 °C. The low stray inductance design supports efficient switching at moderate frequencies. Verify that the gate driver circuitry matches the specified gate charge and threshold voltage requirements for optimal performance.
Part Context
This module belongs to the EasyPIM family, designed for compact three-phase inverter topologies. It combines power semiconductors and protection components in a single housing. The product line targets industrial motor control and auxiliary power conversion where space constraints and thermal efficiency are critical design factors.
Replacement Considerations
Consult official cross-reference lists for compatible modules within the same voltage and current ratings. Verify pin compatibility and thermal resistance values when substituting with other EasyPIM variants or different manufacturer offerings.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175 °C, allowing for overload operation under specific conditions.
How is the module connected to the heatsink?
The module uses PressFIT contact technology for connection to the PCB and utilizes pre-applied thermal interface material for heatsink attachment.
Is automotive qualification provided?
No, this product is not qualified according to AEC Q100 or AEC Q101 documents and is intended for industrial applications.
