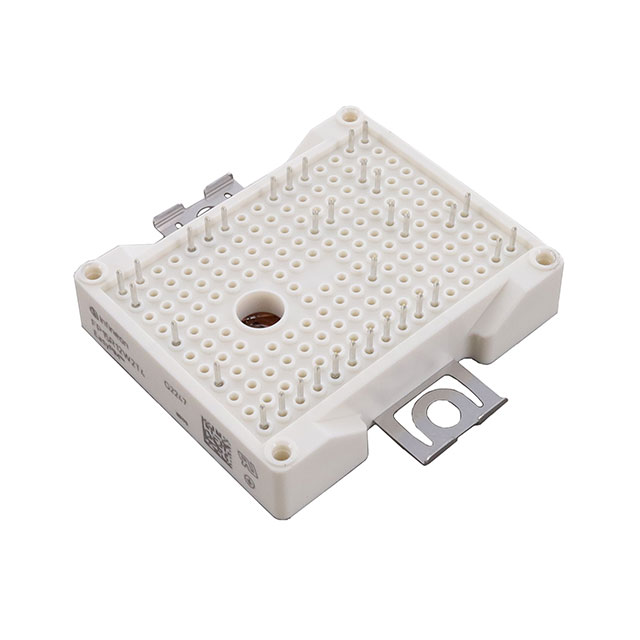

FP15R12W2T4BOMA1

Overview

The FP15R12W2T4BOMA1 is a three-phase inverter IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT4 technology. It features integrated Emitter Controlled 4 diodes and an NTC thermistor within the EasyPIM package. The collector-emitter voltage (VCES) is rated at 1200 V, with a continuous DC collector current of 15 A at 25°C and 30 A at 100°C case temperature. The typical collector-emitter saturation voltage (VCEsat) is 1.85 V at 25°C. Total power dissipation reaches 145 W at 25°C. Operating junction temperatures range from -40°C to 150°C for switching conditions, with a maximum limit of 175°C.

Feature Summary

• Integrates Trench/Fieldstop IGBT4 chips with low switching losses and positive temperature coefficient for VCEsat.
• Includes Emitter Controlled 4 diodes designed for reduced reverse recovery charge and energy.
• Features an embedded NTC thermistor for precise thermal monitoring.
• Utilizes Al2O3 substrate with low thermal resistance and integrated mounting clamps for rugged assembly.

Applications

• Auxiliary inverters
• Air conditioning systems
• Motor drives

Procurement Notes

Verify component authenticity by checking the module label code against official documentation standards. Confirm RoHS compliance status through manufacturer certificates. Ensure ordering suffixes match specific batch requirements. Validate datasheet revision levels before integration into designs. Cross-reference serial numbers with production records for traceability purposes.

Selection Notes

Select this module for applications requiring compact three-phase inverter solutions with integrated thermal sensing. Consider the 1200 V rating and 15 A continuous current capability for moderate power density designs. Evaluate thermal management needs based on the specified RthJC values. Verify gate drive compatibility with the recommended ±15 V operating range.

Part Context

This component belongs to the EasyPIM family, which combines power semiconductors with driver circuits in a single housing. The T4 designation indicates the use of Infineon's fourth-generation Trench/Fieldstop IGBT technology. This series targets industrial motor control and HVAC applications where space efficiency and reliability are critical design parameters.

Replacement Considerations

Direct substitutes include other EasyPIM modules with matching voltage and current ratings. Check pinout compatibility and thermal characteristics when replacing. Verify if updated technology generations offer improved switching performance or lower losses for the same form factor.
