Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO3-3
- Series：EconoPIM™3, TRENCHSTOP™
- Mfr：Infineon Technologies
- Package：Bulk,Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter with Brake
- Vce(on) (Max) @ Vge, Ic：1.55V @ 15V, 200A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO3B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：200 A
- Power - Max：-
- Current - Collector Cutoff (Max)：20 µA
- Input Capacitance (Cies) @ Vce：40.3 nF @ 25 V
Download product information
Overview

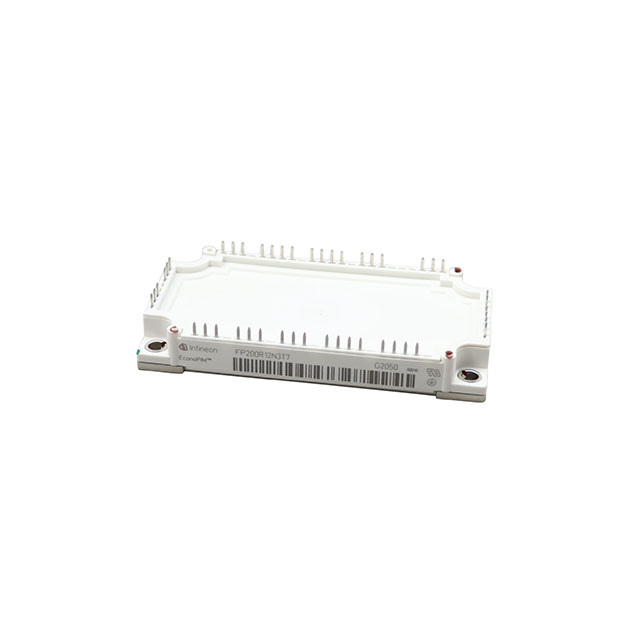

The FP200R12N3T7BPSA1 is an EconoPIM™3 power module integrating TRENCHSTOP™ IGBT7 and emitter-controlled diodes. It features a 1200 V collector-emitter voltage (VCES) and a nominal continuous DC collector current of 200 A at 25°C, with a repetitive peak current of 400 A. The saturation voltage (VCE,sat) is typically 1.55 V at 25°C. The module includes an integrated NTC thermistor rated at 5 kΩ at 25°C. Operating junction temperatures range from -40°C to +175°C. Insulation isolation test voltage is 2.5 kV RMS.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 technology for superior controllability and low on-state voltage.
- Includes an integrated NTC temperature sensor for thermal monitoring.
- Utilizes solder contact technology with a copper base plate and Al2O3 substrate.
- Qualified for industrial applications according to IEC standards.
Applications
- Auxiliary inverters
- Motor drives
- Servo drives
Procurement Notes
Verify the component against official Infineon datasheets to confirm technical specifications and electrical ratings. Ensure that the ordering suffix matches the required package variant and terminal configuration. Cross-reference the manufacturer part number with authorized distributors to validate authenticity and traceability before finalizing procurement.
Selection Notes
Select this module for three-phase inverter topologies requiring high current handling and robust short-circuit ruggedness. Consider the specific thermal resistance values and mounting torque requirements during system design. Verify compatibility with gate driver circuits regarding internal gate resistance and recommended external gate resistor values for optimal switching performance.
Part Context
This component belongs to the EconoPIM™3 family designed for industrial power electronics. It utilizes the seventh generation of TRENCHSTOP™ IGBT technology, which offers improved efficiency compared to previous generations. The module is specifically engineered for variable speed drives and auxiliary power conversion systems within the industrial sector.
Replacement Considerations
Consult official Infineon documentation for qualified substitute part numbers. Verify that any replacement maintains identical pinout configurations, insulation coordination ratings, and thermal characteristics to ensure direct interchangeability without redesigning the host circuit board or cooling infrastructure.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tvj op) is 175°C. Operation above 150°C is permitted under overload conditions as specified in application notes.
What is the isolation test voltage rating?
The module supports an isolation test voltage (VISOL) of 2.5 kV RMS at 50 Hz for 1 minute between terminals and heatsink.
Does the module include a temperature sensor?
Yes, the module integrates an NTC thermistor with a rated resistance of 5 kΩ at 25°C for accurate thermal monitoring.
