FP25R12KT4BPSA1

$46.58

Description：LOW POWER ECONO AG-ECONO2B-411
Series：EconoPIM™ 2

SKU:914e26f8f37a Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO AG-ECONO2B-411
Series：EconoPIM™ 2
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 25A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-ECONO2B
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：25 A
Power - Max：160 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：1.45 nF @ 25 V

Download product information

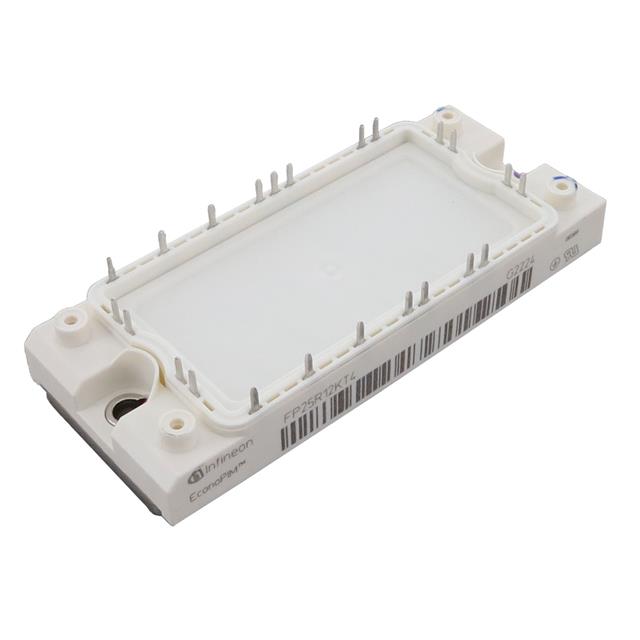

FP25R12KT4BPSA1

Overview

The FP25R12KT4BPSA1 is a three-phase input rectifier IGBT module from Infineon's EconoPIM™2 series. It integrates Trench/Fieldstop IGBT4 and Emitter Controlled 4 diodes with an NTC sensor. Key electrical parameters include a collector-emitter voltage (VCES) of 1200 V, continuous DC collector current (IC nom) of 25 A at TC=100°C, and repetitive peak collector current (ICRM) of 50 A. The typical collector-emitter saturation voltage (VCE sat) is 1.85 V at Tvj=25°C. Total power dissipation is 160 W at TC=25°C. Operating junction temperature ranges from -40°C to 150°C.

Feature Summary

Integrates Trench/Fieldstop IGBT4 technology for low switching losses
Includes an integrated NTC temperature sensor for thermal monitoring
Features an isolated copper base plate for high thermal cycling capability
Utilizes solder contact technology within a standard housing

Applications

Motor drives
Servo drives

Procurement Notes

Verify the specific ordering suffix BPSA1 against official documentation to confirm compliance details and packaging specifications. Ensure that the component matches the required RoHS status and UL approval standards before integration into designs. Cross-reference datasheet revision 3.0 for accurate technical parameters.

Selection Notes

Select this module for applications requiring a compact three-phase rectifier configuration. Consider the 1200 V rating and 25 A continuous current capacity relative to the thermal management strategy. Evaluate the operating temperature range and saturation voltage characteristics against system efficiency requirements.

Part Context

This component belongs to the EconoPIM™2 family, designed for industrial power conversion. It combines IGBT and diode chips on a single substrate to reduce parasitic inductance. The series is characterized by robust mechanical design and high reliability for demanding power electronics environments.
