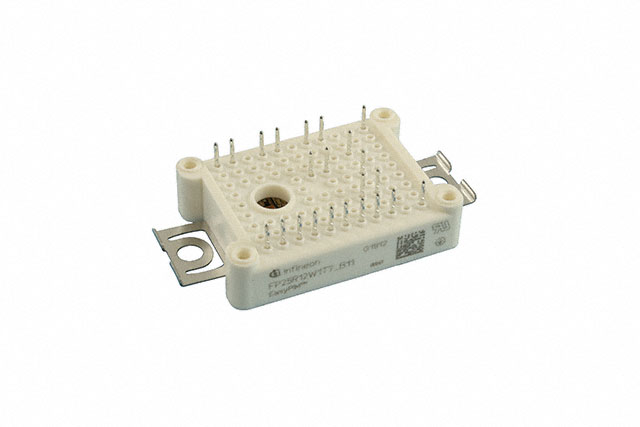

FP25R12W1T7B11BPSA1

Overview

The FP25R12W1T7B11BPSA1 is a TRENCHSTOP IGBT7 EasyPIM module with a 1200 V collector-emitter voltage and 25 A continuous DC collector current. It integrates three-phase inverter IGBTs and diodes, a brake-chopper IGBT and diode, and an emitter-controlled rectifier diode rated at 1600 V. The module utilizes PressFIT contact technology and includes an integrated NTC thermistor with a typical resistance of 5 kΩ at 25°C. Operating temperatures range from -40°C to +175°C for switching components.

Feature Summary

• Integrates TRENCHSTOP IGBT7 and emitter-controlled diode technologies within a single compact package.
• Features PressFIT contact technology for reliable mechanical connection without soldering.
• Includes an integrated NTC thermistor for precise junction temperature monitoring.
• Provides high power density with low thermal resistance Al2O3 substrate.

Applications

• Auxiliary inverters
• Air conditioning systems
• Motor drives

Procurement Notes

Verify the component against official Infineon datasheets to confirm technical specifications and compliance with industrial standards such as IEC 60747. Ensure that the ordering suffix matches the required configuration, as variations may exist within the product family. Cross-reference part numbers with authorized distributors to guarantee authenticity and traceability before finalizing procurement decisions.

Selection Notes

Select this module for applications requiring high reliability and efficient thermal management in variable speed drives. The integrated brake-chopper functionality simplifies design for energy regeneration scenarios. Verify that the gate driver IC selected meets the reinforced isolation requirements necessary for safe operation with the TRENCHSTOP IGBT7 technology.

Part Context

This component belongs to the Infineon EasyPIM series, which combines power semiconductors into a unified module. It utilizes the seventh generation of TRENCHSTOP technology, designed specifically for industrial drives to reduce losses at moderate switching frequencies. The module architecture supports complex topologies while minimizing stray inductance through optimized internal layout.

Replacement Considerations

Direct replacements must match the 1200 V rating, 25 A current capacity, and EasyPIM form factor. Verify compatibility of the PressFIT mounting interface and ensure equivalent thermal resistance characteristics. Consult Infineon documentation for updated modules within the IGBT7 family that offer improved performance metrics or enhanced features.
