FP35R12N2T7B16BPSA1

$61.18

Description：LOW POWER ECONO
Series：TRENCHSTOP™

SKU:4b7e7d81dcc5 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO
Series：TRENCHSTOP™
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：1.6V @ 15V, 35A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-ECONO2B
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：35 A
Power - Max：-
Current - Collector Cutoff (Max)：7 µA
Input Capacitance (Cies) @ Vce：6.62 nF @ 25 V

Download product information

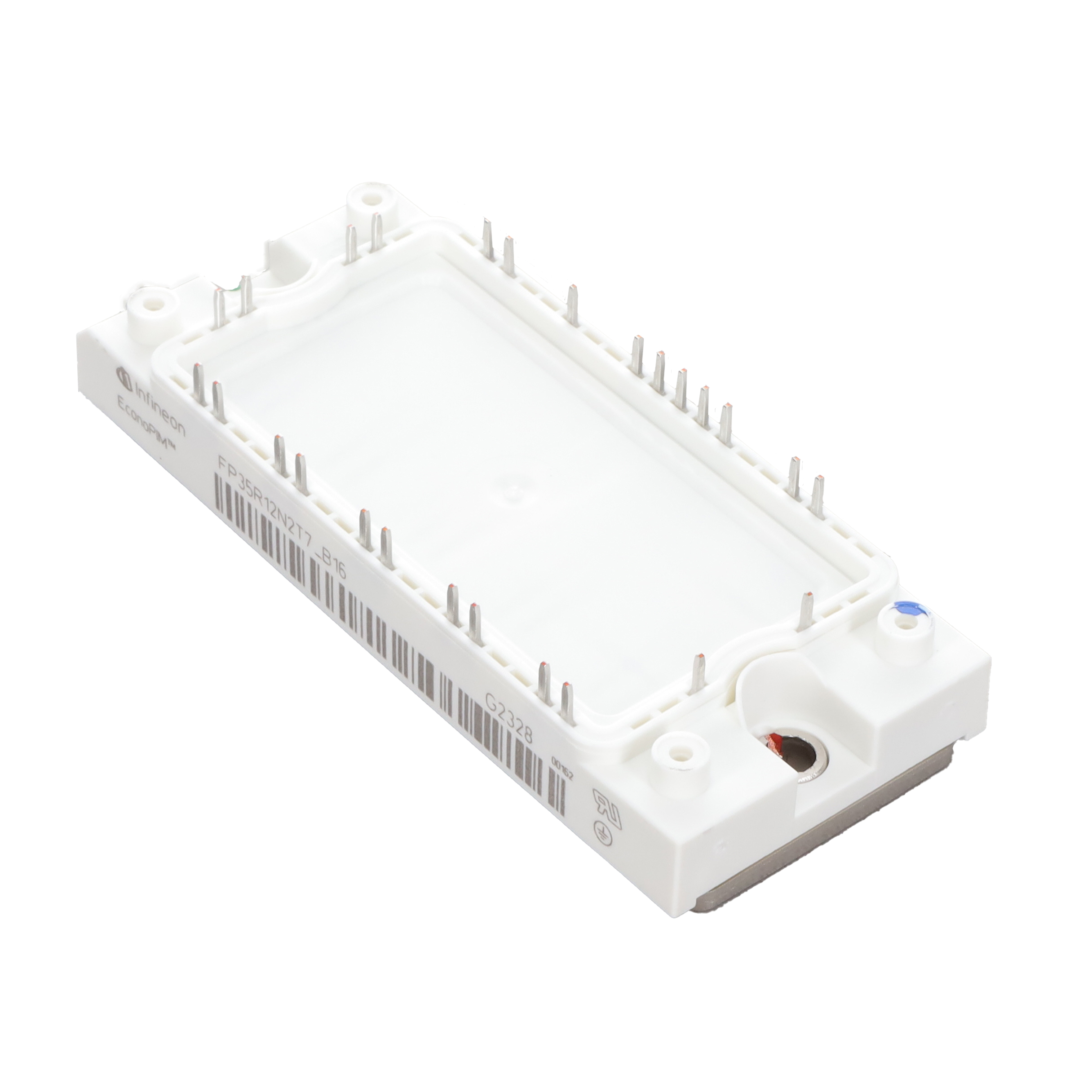

FP35R12N2T7B16BPSA1

Overview

The FP35R12N2T7B16BPSA1 is an EconoPIM™2 module featuring TRENCHSTOP IGBT7 technology and emitter-controlled diodes. It provides a collector-emitter voltage of 1200 V with a nominal continuous DC collector current of 35 A at 25°C, supporting overload operation up to 175°C. The module integrates an NTC temperature sensor for thermal monitoring. Key electrical parameters include a typical saturation voltage of 1.6 V at 25°C and a forward voltage of 1.72 V for the inverter diode. It utilizes a copper base plate with an Al2O3 substrate and solder contact technology.

Feature Summary

Integrates TRENCHSTOP IGBT7 and emitter-controlled diodes for optimized switching performance
Includes an integrated NTC thermistor for precise internal temperature monitoring
Constructed with a copper base plate and low thermal resistance Al2O3 substrate
Designed for high power density and robust thermal cycling capability

Applications

Auxiliary inverters
Motor drives
Servo drives

Procurement Notes

Verify the specific ordering suffix B16 against official Infineon documentation to confirm mechanical or material variations. Ensure compliance with industrial qualification standards such as IEC 60747 and IEC 60068. Confirm that the component meets the required insulation coordination and mounting torque specifications for the target application environment.

Selection Notes

Select this module for applications requiring 1200 V blocking capability and 35 A continuous current handling. Consider the low saturation voltage and integrated NTC for efficient thermal management. Verify compatibility with the EconoPIM™2 footprint and ensure the drive circuit supports the specified gate charge and threshold voltage requirements for reliable switching.

Part Context

This component belongs to the Infineon EconoPIM™2 series, utilizing TRENCHSTOP IGBT7 technology. It is designed for industrial applications and features a compact three-phase inverter configuration with an integrated rectifier stage. The module combines high power density with robust thermal performance suitable for demanding power conversion environments.
