FP35R12W2T4BOMA1

Overview

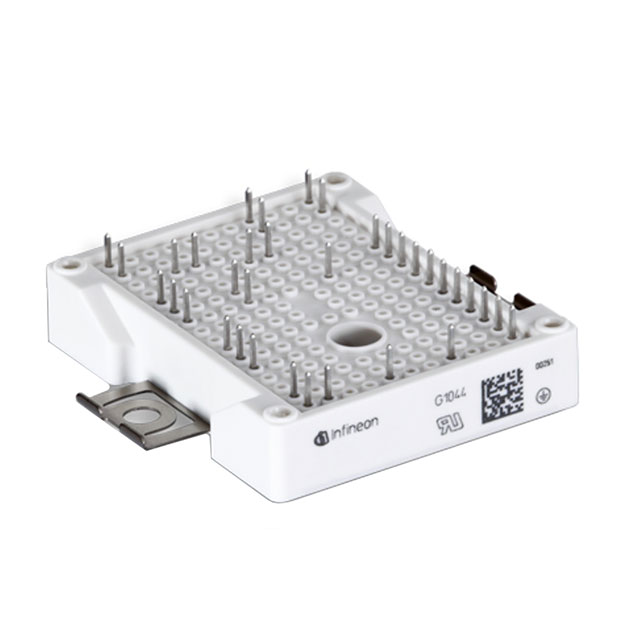

The Infineon FP35R12W2T4 is an EasyPIM module integrating fast Trench/Fieldstop IGBT4 and Emitter Controlled 4 diodes with an NTC thermistor. It features a collector-emitter voltage of 1200 V, a nominal continuous DC collector current of 35 A at 100°C, and a repetitive peak collector current of 70 A. The typical VCEsat is 1.85 V at 25°C, while the diode forward voltage is 1.65 V. Total power dissipation reaches 215 W. The module utilizes Al2O3 substrate technology for low thermal resistance and includes integrated mounting clamps.

Feature Summary

• Integrates fast Trench/Fieldstop IGBT4 and Emitter Controlled 4 diodes
• Includes built-in NTC thermistor for temperature monitoring
• Features compact design with rugged integrated mounting clamps
• Utilizes Al2O3 substrate with low thermal resistance

Applications

• Auxiliary Inverters
• Air Conditioning systems
• Motor Drives

Procurement Notes

Verify the exact ordering suffix against official documentation to confirm specific material or packaging variations. Ensure the component matches the required industrial specifications and that all technical parameters align with the system requirements before finalizing procurement.

Selection Notes

Select this module for applications requiring high switching frequency and low conduction losses. Consider the 1200 V rating and 35 A continuous current capability when designing the thermal management system. Verify gate drive compatibility with the specified internal gate resistor and threshold voltages.

Part Context

This component belongs to the EasyPIM series from Infineon Technologies. It combines power semiconductors into a single package designed for efficient motor control and inverter applications. The series is known for its compact form factor and integrated protection features.

Replacement Considerations

Consult official replacement lists for compatible modules within the EasyPIM family. Verify pinout compatibility and electrical ratings before substituting.
