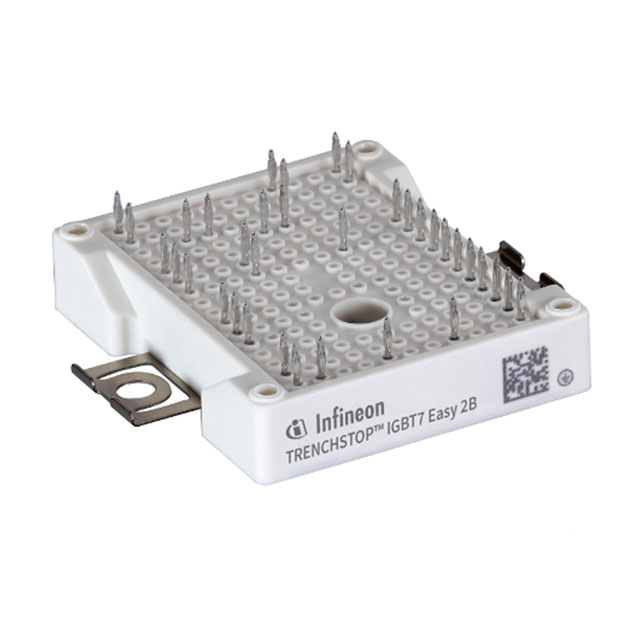

FP35R12W2T7BPSA1

$44.71

Description：LOW POWER EASY AG-EASY2B-711
Series：EasyPIM™

SKU:1deececf30a9 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER EASY AG-EASY2B-711
Series：EasyPIM™
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：-
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-EASY1B-2
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：35 A
Power - Max：-
Current - Collector Cutoff (Max)：5.8 µA
Input Capacitance (Cies) @ Vce：6.62 nF @ 25 V

Download product information

FP35R12W2T7BPSA1

Overview

The FP35R12W2T7BPSA1 is a Power Integrated Module (PIM) utilizing TRENCHSTOP™ IGBT7 technology. It features a three-phase inverter topology with an integrated brake-chopper and rectifier, housed in the EasyPIM™ package. Key electrical parameters include a collector-emitter voltage of 1200 V and a continuous DC collector current of 35 A at TH=105°C. The module incorporates an NTC thermistor with a rated resistance of 5 kΩ at 25°C. Insulation coordination provides a 2.5 kV AC isolation test voltage for one minute.

Feature Summary

Integrates TRENCHSTOP™ IGBT7 and emitter-controlled diodes for optimized switching performance.
Includes an internal NTC thermistor for precise junction temperature monitoring.
Features an Al2O3 substrate to ensure low thermal resistance and high power density.
Provides robust insulation with 2.5 kV AC isolation capability.

Applications

Air conditioning systems
Auxiliary inverters
Motor drives

Procurement Notes

Verify the specific ordering suffix BPSA1 against official Infineon documentation to confirm exact material content and compliance status. Ensure that the procurement channel is authorized to guarantee product authenticity and access to valid technical support resources.

Selection Notes

Select this component for industrial applications requiring a compact PIM solution with integrated braking capabilities. Confirm compatibility with recommended Infineon gate drivers as specified in the datasheet. Validate thermal management requirements against the provided thermal resistance values for the intended heat sink configuration.

Part Context

This part belongs to the Infineon EasyPIM™ series, designed for three-phase applications. It combines inverter legs, a brake-chopper, and a rectifier into a single housing. The integration reduces system complexity and footprint compared to discrete solutions or standard six-pack modules.

Replacement Considerations

Consult official Infineon cross-reference lists for verified substitutes. Do not assume functional equivalence with other models based solely on voltage and current ratings without verifying pinout and thermal characteristics.

FAQ

What is the maximum repetitive peak collector current?

The maximum repetitive peak collector current (ICRM) is 70 A, limited by the operating junction temperature.

Is the module suitable for overload operation?

Yes, the module supports overload operation up to a junction temperature of 175°C, subject to specific conditions outlined in application note AN 2018-14.
