Product Detailed Parameters
- Description：IGBT MOD 1200V 55A 210W
- Series：EconoPIM™ 2
- Mfr：Infineon Technologies
- Package：Bulk
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.3V @ 15V, 40A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：55 A
- Power - Max：210 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：2.5 nF @ 25 V
Download product information
Overview

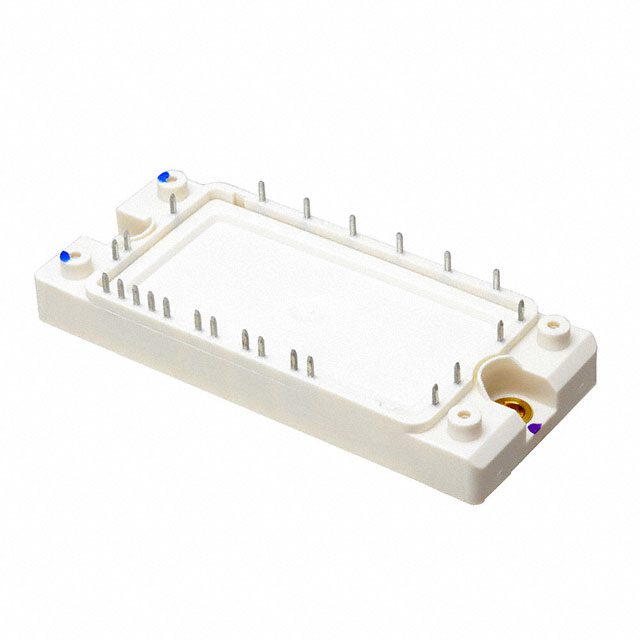

The FP40R12KE3BOSA1 is an EconoPIM™2 IGBT module integrating Trench/Fieldstop IGBT3 and Emitter Controlled 3 diodes. It features a 1200 V collector-emitter voltage (VCES) with continuous DC collector currents of 40 A at TC=80°C and 55 A at TC=25°C. The inverter IGBT exhibits a saturation voltage (VCEsat) ranging from 1.80 V to 2.30 V, while the brake-chopper IGBT operates at 15 A to 25 A. Total power dissipation reaches 210 W for the inverter section and 105 W for the brake-chopper. The module includes a 5 kΩ NTC thermistor, supports screw mounting via M5 screws, and weighs 180 g.
Feature Summary
- Integrates Trench/Fieldstop IGBT3 technology with Emitter Controlled 3 diodes for optimized switching performance.
- Features a dual configuration combining inverter switches with a dedicated brake-chopper circuit.
- Includes an integrated NTC thermistor for precise junction temperature monitoring.
- Provides high short-circuit ruggedness with defined safe operating limits.
Applications
- Variable speed drives and motor control systems
- Induction heating equipment
- Uninterruptible power supplies (UPS)
- Solar inverters
Procurement Notes
Verify the specific ordering suffix BOSA1 against official Infineon documentation to confirm packaging and reel specifications. Ensure compliance with RoHS directives and check for any regional supply restrictions or alternative package variants before finalizing procurement orders.
Selection Notes
Select this component for applications requiring combined inverter and braking chopper functionality within a single compact housing. Evaluate thermal resistance values against your heatsink design to ensure the maximum junction temperature remains within the specified operational range during peak load conditions.
Part Context
This part belongs to the EconoPIM™2 family, designed for cost-effective and space-saving power electronics solutions. It utilizes Infineon's third-generation IGBT technology, offering improved efficiency compared to previous generations while maintaining robust mechanical and electrical characteristics for industrial environments.
Replacement Considerations
Consult official replacement guides for direct equivalents such as the FP40R12KE3 without the BOSA1 suffix if packaging differences are acceptable. Verify pinout compatibility and thermal parameters when considering cross-references from other manufacturers.
FAQ
What is the maximum short-circuit current rating for the inverter IGBT?
The repetitive peak short-circuit current (ISC) is rated at 160 A for the inverter IGBT under specified test conditions.
Does the module include a rectifier section?
Yes, the module integrates a rectifier diode with a repetitive peak reverse voltage of 1600 V and a maximum RMS forward current of 50 A per chip.
What is the typical gate charge for the inverter IGBT?
The typical gate charge (QG) for the inverter IGBT is 0.33 µC.
