Product Detailed Parameters
- Description：IGBT MOD 1200V 50A 280W
- Series：EconoPIM™ 2
- Mfr：Infineon Technologies
- Package：Bulk,Bulk
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 50A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：50 A
- Power - Max：280 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：2.8 nF @ 25 V
Download product information
Overview

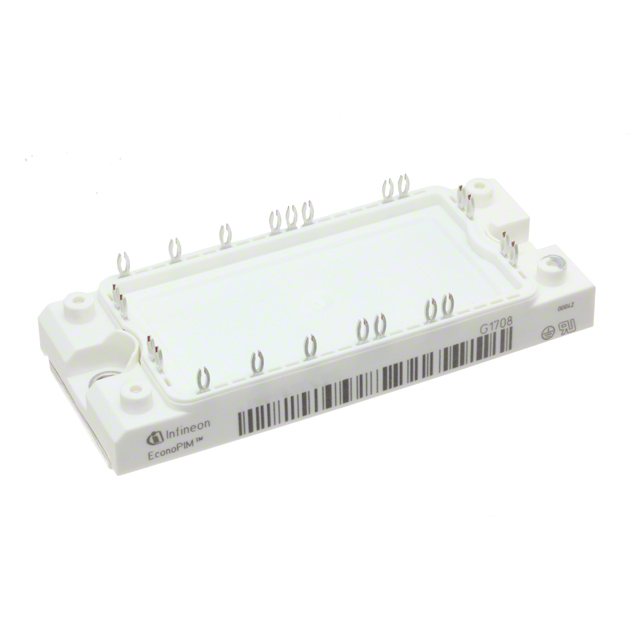

The FP50R12KT4B11 is a three-phase PIM IGBT module utilizing Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode technology. It features PressFIT connection technology and an integrated NTC temperature sensor. Key electrical parameters include a collector-emitter voltage (VCES) of 1200 V, continuous DC collector current (IC nom) of 50 A at TC = 95°C, and repetitive peak collector current (ICRM) of 100 A. The maximum power dissipation is 280 W at TC = 25°C. Collector-emitter saturation voltage (VCEsat) ranges from 1.85 V to 2.25 V depending on junction temperature. The module operates within a junction temperature range of -40°C to 150°C.
Feature Summary
- Integrates Trench/Fieldstop IGBT4 and Emitter Controlled 4 diodes for low switching losses.
- Utilizes PressFIT contact technology for robust mechanical connections.
- Features an integrated NTC temperature sensor for thermal monitoring.
- Constructed with a copper base plate for high power cycling capability.
Applications
- Auxiliary Inverters
- Motor Drives
- Servo Drives
Procurement Notes
Verify the specific ordering suffix B11 against official Infineon documentation to confirm exact configuration details. Ensure compatibility with PressFIT mounting requirements and verify that the component meets RoHS compliance standards required for your manufacturing process before finalizing procurement orders.
Selection Notes
Select this module for applications requiring a 1200 V rating and 50 A continuous current capacity. Consider the 150°C operating junction temperature limit and the specific thermal resistance values when designing heatsinking solutions. Verify that the system can accommodate the PressFIT termination method rather than traditional screw or solder connections.
Part Context
This component belongs to the EconoPIM2 series manufactured by Infineon Technologies. It combines inverter, rectifier, and brake-chopper functions into a single compact package. The module utilizes silicon-based IGBT4 technology optimized for industrial power conversion applications requiring high reliability and efficient thermal management.
Replacement Considerations
Consult official Infineon replacement guides for direct substitutes. Cross-referencing requires matching voltage ratings, current capacities, and package dimensions. Verify functional equivalence of internal diode and IGBT technologies before implementing any alternative components in existing designs.
FAQ
What is the maximum repetitive peak collector current?
The maximum repetitive peak collector current (ICRM) is 100 A for a pulse duration of 1 ms.
Does the module include thermal protection features?
Yes, the module includes an integrated NTC temperature sensor with a rated resistance of 5 kΩ at 25°C for thermal monitoring.
What is the isolation test voltage?
The isolation test voltage (VISOL) is 2.5 kV RMS at 50 Hz for 1 minute.
