FP50R12N2T7B16BPSA1

$69.36

Description：LOW POWER ECONO
Series：-

SKU:4f8b36fc662c Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：-
Vce(on) (Max) @ Vge, Ic：-
Input：-
NTC Thermistor：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：-
Current - Collector (Ic) (Max)：-
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

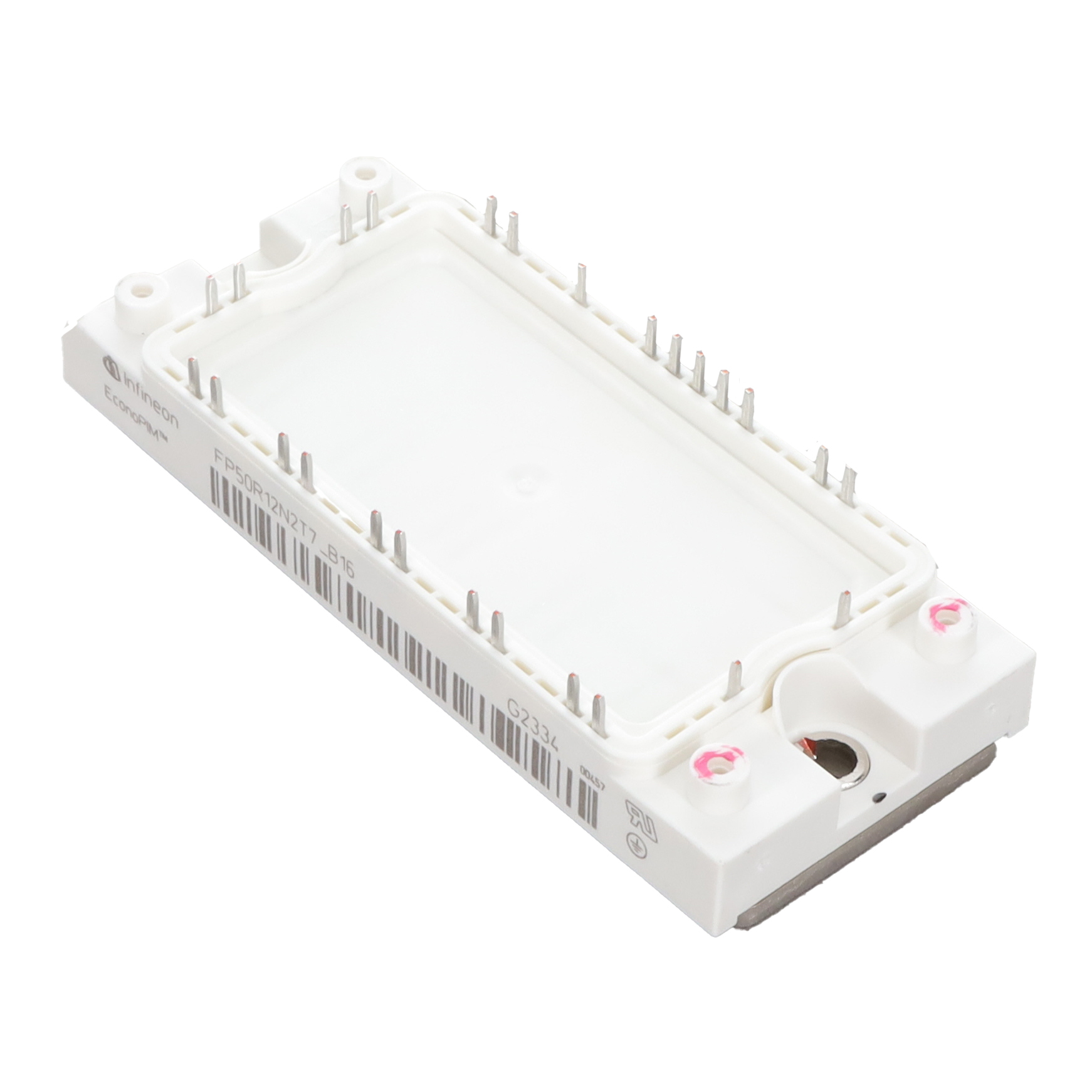

FP50R12N2T7B16BPSA1

Overview

The FP50R12N2T7B16BPSA1 is a Power Integrated Module (PIM) IGBT module manufactured by Infineon Technologies. It utilizes TRENCHSTOP™ IGBT7 technology and belongs to the FPXR12N2X7G series. The device features a 3-phase inverter configuration with a maximum collector-emitter voltage of 1200 V and a continuous collector current of 50 A at 25°C. The typical collector-emitter saturation voltage is 1.5 V, while the gate-emitter leakage current is specified at 100 nA. Operating temperatures range from -40°C to +175°C, with a maximum gate-emitter voltage of 20 V. The component is housed in a Tray package and employs Silicon technology.

Feature Summary

Integrates TRENCHSTOP™ IGBT7 technology for optimized switching performance.
Configured as a three-phase inverter Power Integrated Module.
Supports industrial operating temperature ranges up to 175°C.

Applications

Industrial motor drives
Uninterruptible power supplies
Induction heating systems

Procurement Notes

Verify the specific ordering suffix B16 against official Infineon documentation to confirm exact mechanical and electrical specifications. Confirm RoHS compliance status through the manufacturer's product qualification reports. Ensure compatibility with existing thermal management solutions given the 175°C junction temperature rating. Cross-reference the SP005354118 alias for accurate inventory tracking.

Selection Notes

Select this module for applications requiring a 1200 V, 50 A three-phase inverter solution. Consider the 1.5 V saturation voltage for conduction loss calculations. Verify that the system design accommodates the specific pinout and dimensions of the FPXR12N2X7G series packaging. Evaluate thermal resistance requirements based on the intended duty cycle and ambient conditions.

Part Context

This component is part of Infineon's FPXR12N2X7G series, which incorporates TRENCHSTOP™ IGBT7 technology. The series is designed for high-efficiency power conversion in industrial applications. The B16 suffix denotes specific packaging or variant details within this family. It shares technological foundations with other modules in the TRENCHSTOP™ IGBT7 lineup.

Replacement Considerations

Consult official Infineon substitution guides for compatible alternatives. Verify pin-to-pin compatibility and thermal characteristics before replacing. Check for updated datasheets regarding any functional changes in newer revisions.
