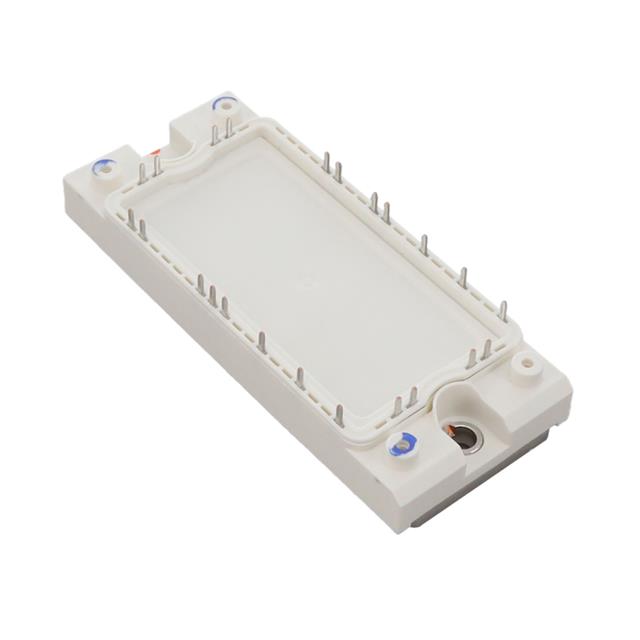

FP50R12N2T7PBPSA1

$69.45

Description：1200 V, 50 A PIM IGBT MODULE
Series：EconoPIM™ 2, TRENCHSTOP™

SKU:7a3d89e121ec Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：1200 V, 50 A PIM IGBT MODULE
Series：EconoPIM™ 2, TRENCHSTOP™
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：1.85V @ 15V, 25A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-ECONO2B
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：50 A
Power - Max：-
Current - Collector Cutoff (Max)：4 µA
Input Capacitance (Cies) @ Vce：11.1 nF @ 25 V

Download product information

FP50R12N2T7PBPSA1

Overview

The FP50R12N2T7PBPSA1 is a PIM IGBT module utilizing TRENCHSTOP™ IGBT7 technology in an EconoPIM™2 package. It features a collector-emitter voltage of 1200 V and a nominal continuous collector current of 50 A at 25°C, with a maximum operating junction temperature of 175°C. The typical saturation voltage is 1.5 V. The module includes integrated emitter-controlled diodes and an NTC thermistor for thermal monitoring. It employs a copper base plate with pre-applied thermal interface material and solder contact technology.

Feature Summary

Integrates TRENCHSTOP™ IGBT7 and emitter-controlled 7 diode technologies within a single compact module.
Includes an integrated NTC temperature sensor for precise thermal management and protection.
Features a copper base plate with Al2O3 substrate to ensure high power cycling capability and low thermal resistance.
Comes with pre-applied thermal interface material and utilizes solder contact technology for reliable assembly.

Applications

Auxiliary inverters
Motor drives
Servo drives

Procurement Notes

Verify the specific ordering suffix PBPSA1 against official Infineon documentation to confirm exact configuration details. Ensure compliance with industrial qualification standards such as IEC 60747, 60749, and 60068. Confirm storage conditions for modules containing pre-applied thermal interface material prior to installation.

Selection Notes

Select this component for applications requiring high overload capability up to 175°C and robust thermal cycling performance. The integrated NTC sensor simplifies temperature monitoring requirements. Verify that the system design accommodates the specific stray inductance and mounting torque specifications provided in the datasheet.

Part Context

This part belongs to the FP50R12 series of PIM IGBT modules from Infineon Technologies. It represents the integration of three-phase inverter and rectifier functions into a single unit, designed to reduce footprint and simplify system architecture compared to discrete solutions.

Replacement Considerations

Consult official Infineon cross-reference guides for verified substitutes. Ensure any replacement matches the EconoPIM™2 form factor, electrical ratings, and pinout configuration.
