FP75R12KT4B11BOSA1

$90.41

Description：IGBT MOD 1200V 75A 385W
Series：-

SKU:f8f076063d4c Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 75A 385W
Series：-
Mfr：Infineon Technologies
Package：Bulk,Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 75A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：75 A
Power - Max：385 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：4.3 nF @ 25 V

Download product information

FP75R12KT4B11BOSA1

Overview

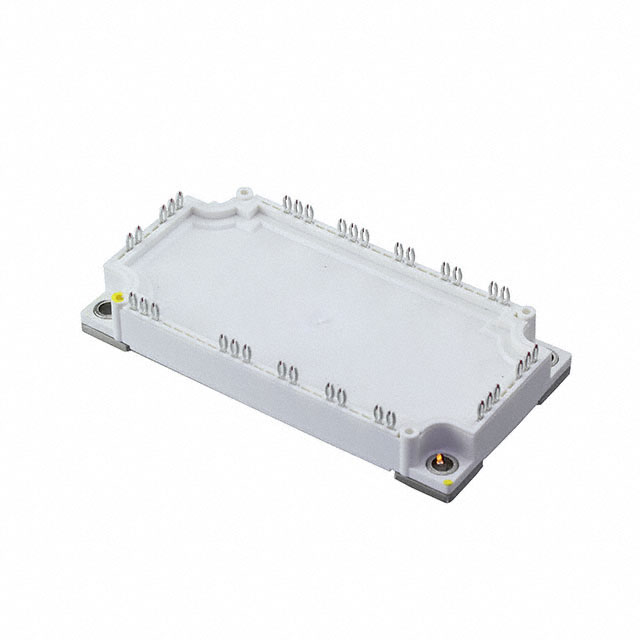

The FP75R12KT4B11BOSA1 is an EconoPIM™3 module featuring fast Trench/Fieldstop IGBT4 and emitter-controlled diodes with PressFIT technology. It integrates a three-phase inverter, rectifier, and brake-chopper. Key electrical parameters include a collector-emitter voltage (VCES) of 1200 V, continuous DC collector current (ICDC) of 75 A at TC=95°C, and repetitive peak current (ICRM) of 150 A. The saturation voltage (VCE,sat) is typically 1.85 V at IC=75 A and Tvj=25°C. The module includes an integrated NTC thermistor rated at 5 kΩ at 25°C.

Feature Summary

Integrates fast Trench/Fieldstop IGBT4 and emitter-controlled diodes for low switching losses and low saturation voltage.
Utilizes PressFIT contact technology to ensure high power and thermal cycling capability.
Includes an integrated NTC temperature sensor for reliable thermal monitoring.
Features a copper base plate and standard housing design.

Applications

Servo drives
Motor drives
Auxiliary inverters

Procurement Notes

Verify the specific ordering suffix B11BOSA1 against official Infineon documentation to confirm terminal configuration and packaging details. Ensure compatibility with PressFIT mounting requirements by consulting application notes AN2007-09 or AN2017-03 for hole specifications. Confirm industrial qualification standards such as IEC 60747 and IEC 60068 are met for the target environment.

Selection Notes

Select this module for applications requiring a combined three-phase inverter, rectifier, and brake-chopper topology. The 1200 V rating and 75 A continuous current capacity suit medium-power industrial drives. Consider the positive temperature coefficient of VCE,sat for parallel operation stability. Verify that the system can accommodate the PressFIT termination method rather than traditional soldering.

Part Context

This component belongs to the Infineon EconoPIM™3 series, which combines multiple power stages into a single compact package. It utilizes Trenchstop IGBT4 technology, balancing switching performance and conduction losses. The module is designed for industrial applications, offering robust insulation coordination with a basic insulation class according to IEC 61140.
