FP75R12N2T4B16BPSA1

$77.92

Description：LOW POWER ECONO AG-ECONO2B-411
Series：-

SKU:8c3b86c85930 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO AG-ECONO2B-411
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：-
Vce(on) (Max) @ Vge, Ic：-
Input：-
NTC Thermistor：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：-
Current - Collector (Ic) (Max)：-
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

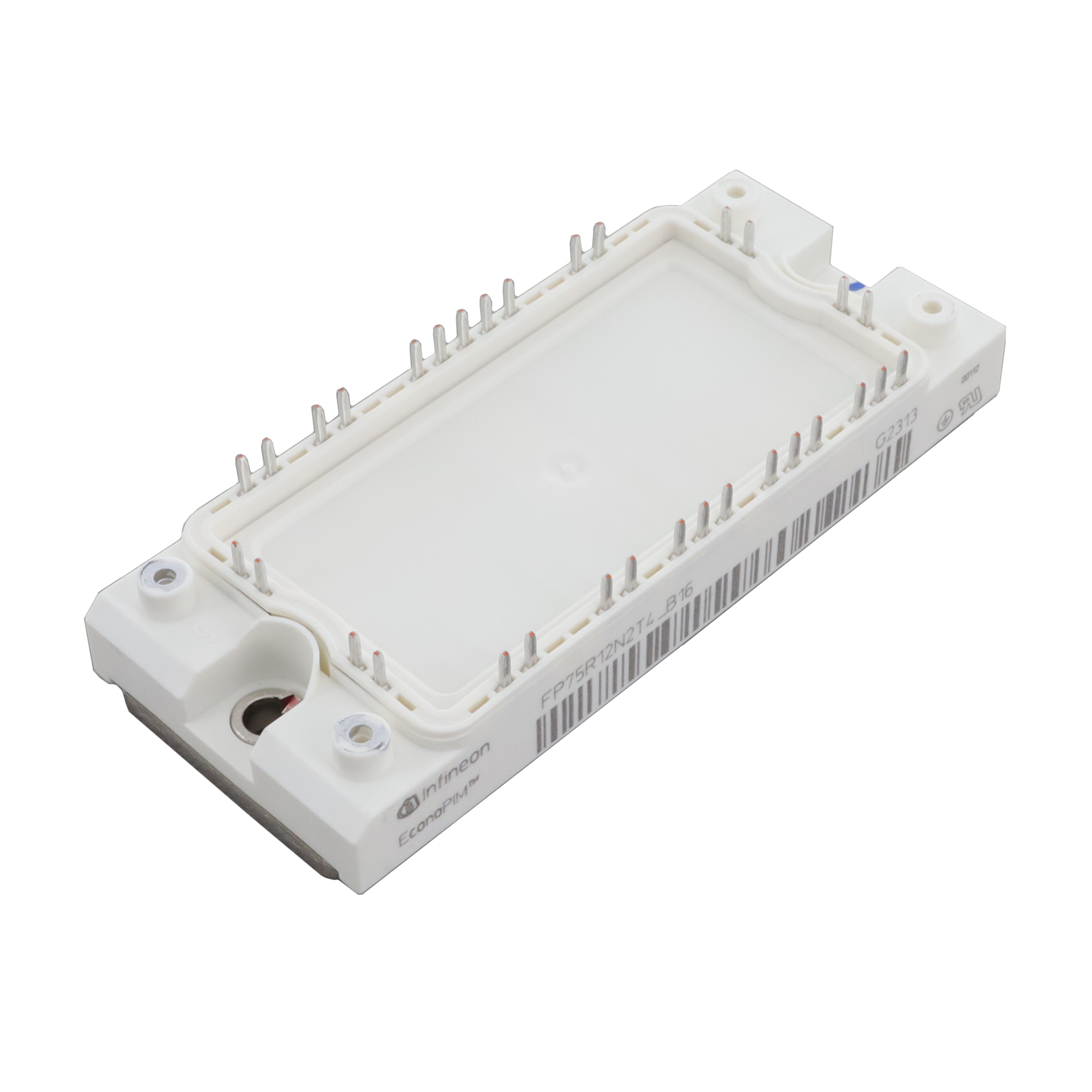

FP75R12N2T4B16BPSA1

Overview

The FP75R12N2T4B16BPSA1 is a silicon IGBT module from Infineon Technologies, belonging to the FPXR12N2X7G series. It features a 1200 V collector-emitter voltage rating and a continuous collector current of 75 A at 25°C. The device utilizes Trenchstop technology for optimized switching performance. Packaged in EconoPIM™ 2 format with screw mounting, it supports a maximum junction temperature of 175°C. This component integrates three-phase inverter and rectifier functions within a single compact unit, designed for high-efficiency power conversion applications.

Feature Summary

Integrates three-phase inverter and input rectifier stages into a single package
Utilizes Trenchstop technology for improved switching characteristics
Features EconoPIM™ 2 packaging for compact system integration
Supports high thermal stability with elevated maximum junction temperature

Applications

Industrial motor drives
Induction heating systems
Uninterruptible power supplies (UPS)
Medium-power inverters

Procurement Notes

Verify the complete part number including the B16 suffix against official Infineon documentation to ensure correct variant identification. Confirm RoHS compliance status and specific datasheet revision prior to ordering. Check for obsolescence notices as distribution channels may list discontinued or end-of-life inventory. Ensure compatibility with required gate drive voltages and thermal management solutions specified in the technical data sheet.

Selection Notes

Select this module when a combined three-phase inverter and rectifier solution is required in a space-constrained design. Compare saturation voltage and switching losses against alternative Trenchstop generations for efficiency optimization. Verify that the 75 A current rating meets peak load requirements under expected operating temperatures. Ensure the EconoPIM™ 2 footprint aligns with existing PCB or baseplate designs.

Part Context

This component is part of Infineon's FPXR12N2X7G family, which represents advanced Trenchstop IGBT modules. The FP75R12N2T4B16BPSA1 variant specifically targets applications requiring integrated rectification and inversion. It succeeds earlier EconoPIM designs by offering higher power density and improved thermal performance within the same mechanical envelope.

Replacement Considerations

Direct replacements include FP75R12N2T4PBPSA1 and FP75R12N2T4BPSA1. Verify pinout compatibility and electrical parameters before substitution. Alternative packages such as EconoPACK may require mechanical redesign.
