Product Detailed Parameters
- Description：LOW POWER ECONO
- Series：EconoPIM™3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.8V @ 15V, 75A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO3
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：-
- Current - Collector Cutoff (Max)：13 µA
- Input Capacitance (Cies) @ Vce：15.1 nF @ 25 V
Download product information
Overview

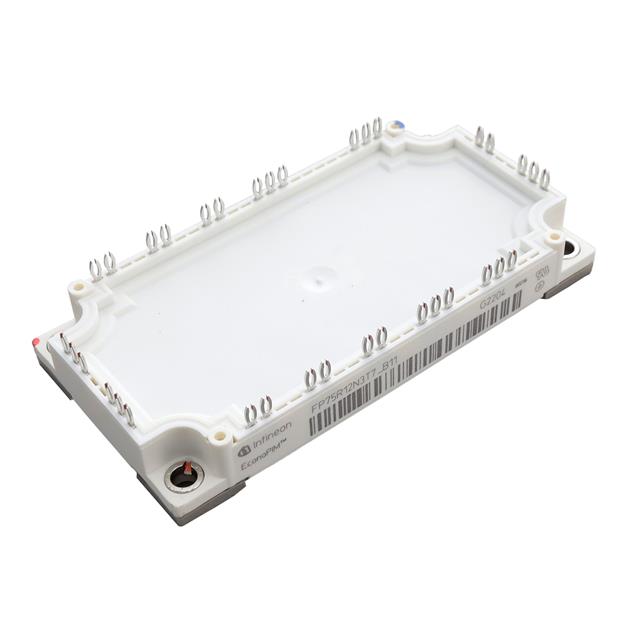

The FP75R12N3T7B11BPSA1 is a PIM IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a 1200 V collector-emitter voltage and a nominal continuous DC collector current of 75 A at 25°C. The typical saturation voltage is 1.55 V at 25°C. Operating temperature ranges from -40°C to +175°C. The module uses PressFIT contact technology and includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 and emitter-controlled diodes for optimized switching performance.
- Features PressFIT contact technology for reliable connection without soldering.
- Includes an integrated NTC temperature sensor for thermal monitoring.
- Designed for high power and thermal cycling capability with a copper base plate.
Applications
- Auxiliary inverters
- Motor drives
- Servo drives
Procurement Notes
Verify the specific ordering suffix BPSA1 against official documentation to confirm exact configuration details. Ensure compliance with industrial qualification standards such as IEC 60747, 60749, and 60068 before integration. Confirm mounting torque specifications and application notes for proper installation procedures.
Selection Notes
Select this module for applications requiring robust industrial-grade power conversion. Consider the 1200 V rating and 75 A current capacity for suitable load requirements. Evaluate the thermal management needs given the operating temperature range up to 175°C and the available thermal resistance values.
Part Context
This component belongs to the EconoPIM™3 series by Infineon Technologies. It represents a Power Integrated Module (PIM) designed for three-phase inverter configurations. The series integrates multiple semiconductor chips into a single housing to simplify system design and improve reliability in power electronics applications.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs if considering alternative modules from the same manufacturer or other vendors.
FAQ
What is the maximum junction temperature for operation?
The maximum operating junction temperature is 175°C. Operation above 150°C is permitted under overload conditions.
Does the module include a temperature sensor?
Yes, it includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C.
What contact technology is used for mounting?
The module utilizes PressFIT contact technology for connecting to the circuit board.
