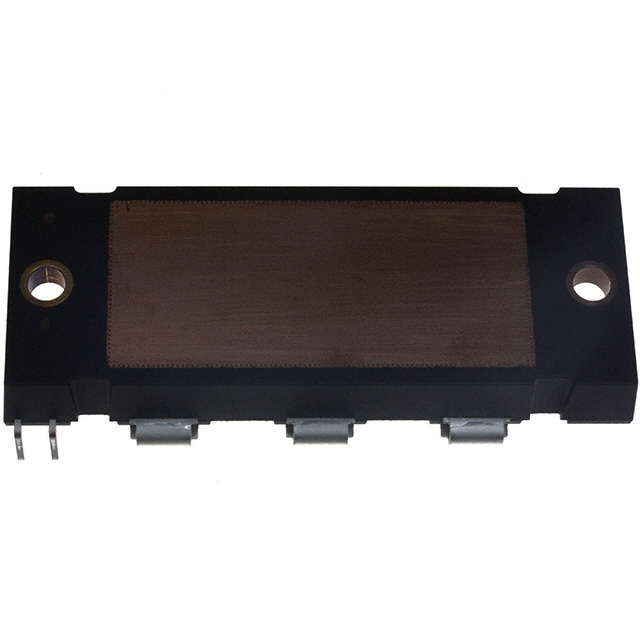

FP7G100US60

$29.16

Description：IGBT, 100A, 600V, N-CHANNEL
Series：Power-SPM™

SKU:2110e4d3b3a4 Category: IGBT Modules Brand: Fairchild Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT, 100A, 600V, N-CHANNEL
Series：Power-SPM™
Mfr：Fairchild Semiconductor
Package：Tube
IGBT Type：-
Configuration：Half Bridge
Vce(on) (Max) @ Vge, Ic：2.8V @ 15V, 100A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：EPM7
Supplier Device Package：EPM7
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：100 A
Power - Max：400 W
Current - Collector Cutoff (Max)：250 µA
Input Capacitance (Cies) @ Vce：6.085 nF @ 30 V

Download product information

FP7G100US60

Overview

The FP7G100US60 is a transfer molded type IGBT module manufactured by Fairchild Semiconductor. It features a dual configuration with a maximum collector-emitter breakdown voltage of 600V and a maximum collector current of 100A. The device exhibits a collector-emitter saturation voltage of 2.8V. This component is classified as obsolete and is no longer in production.

Feature Summary

Transfer molded construction for robust thermal management
Dual IGBT configuration suitable for bridge applications

Applications

Industrial motor drives
Power inversion systems
General purpose power electronics

Procurement Notes

This component is officially marked as obsolete and discontinued by the manufacturer. Availability is restricted to surplus or secondary market channels. Verify part authenticity and condition carefully when sourcing from third-party distributors, as original production support is unavailable.

Selection Notes

Engineers should evaluate alternative active components due to the discontinued status of this specific model. Ensure replacement parts match the required 600V rating and 100A current capacity while maintaining compatible pin configurations and thermal characteristics for existing designs.

Part Context

Fairchild Semiconductor's IGBT modules are designed for high-power switching applications. The FP7G100US60 belongs to a series of transfer molded devices intended for industrial use. As an obsolete part, it represents legacy technology within the company's historical product portfolio.
