Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2B-411
- Series：EconoPACK™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.95V @ 15V, 100A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：650 V
- Current - Collector (Ic) (Max)：100 A
- Power - Max：335 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：6.2 nF @ 25 V
Download product information
Overview

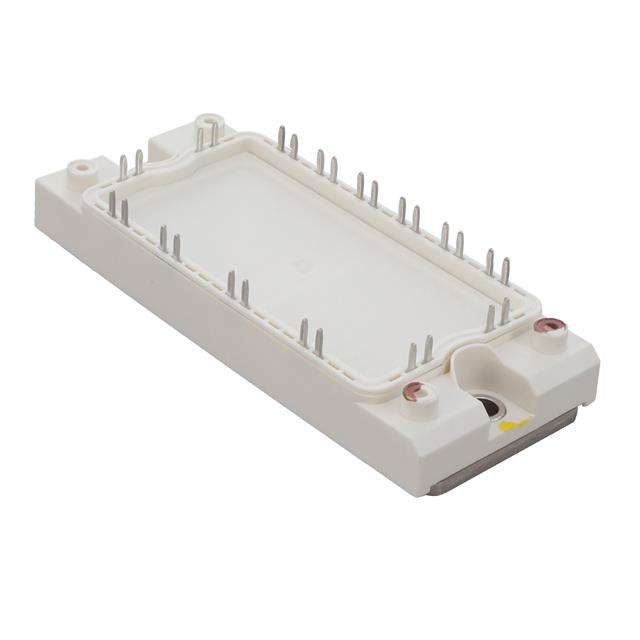

The FS100R07N2E4BPSA1 is a six-pack IGBT module utilizing Trench/Fieldstop IGBT4 technology and an Emitter Controlled 4 diode. It features a copper base plate, solder contact technology, and an integrated NTC temperature sensor. The collector-emitter voltage (VCES) is rated at 650 V with a continuous DC collector current (IC nom) of 100 A at TC = 70°C and a repetitive peak collector current (ICRM) of 200 A. The typical collector-emitter saturation voltage (VCE sat) is 1.70 V at Tvj = 125°C. The total power dissipation (Ptot) is 335 W at TC = 25°C. Thermal resistance from junction to case is 0.45 K/W per IGBT and 0.80 K/W per diode.
Feature Summary
- High short circuit capability with self-limiting short circuit current
- Increased blocking voltage capability up to 650 V
- Integrated NTC temperature sensor for thermal monitoring
- Copper base plate construction with standard housing
Applications
- Motor drives
- Industrial inverter applications
- Power conversion systems
Procurement Notes
Verify the exact ordering suffix against Infineon's official documentation to ensure correct packaging and variant specifications. Confirm that the component matches the required technical parameters for your specific application before procurement. Cross-reference the manufacturer part number with authorized distributors to guarantee authenticity and traceability.
Selection Notes
Select this module for applications requiring robust short-circuit handling and high blocking voltage. Ensure the cooling system can maintain the case temperature within specified limits to achieve the rated 100 A continuous current. Consider the internal gate resistor value when designing the gate drive circuitry for optimal switching performance.
Part Context
This component belongs to the EconoPACK™2 series of IGBT modules manufactured by Infineon Technologies. It integrates advanced Trench/Fieldstop IGBT4 technology with Emitter Controlled 4 diodes. The module is designed for industrial power electronics applications, offering a compact form factor with high power density and reliable thermal management capabilities.
Replacement Considerations
Consult official Infineon replacement guides for direct substitutes. Verify pinout compatibility and electrical ratings before substituting. Ensure any alternative module meets the same mechanical and thermal requirements for seamless integration into existing designs.
