Product Detailed Parameters
- Description：IGBT MOD 1200V 100A 20MW EASY
- Series：EasyPACK™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：1.50V @ 15V, 100A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-EASY2B-1
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：100 A
- Power - Max：-
- Current - Collector Cutoff (Max)：9 µA
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

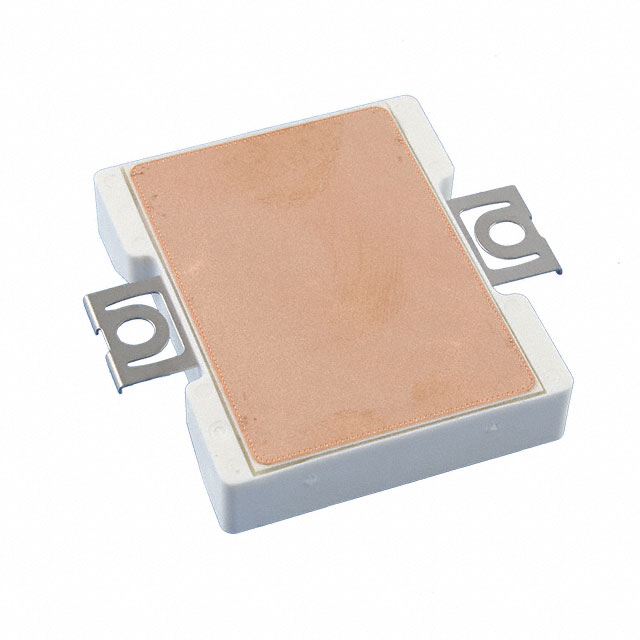

The FS100R12W2T7B11BOMA1 is a six-pack IGBT module from Infineon's TRENCHSTOP™ IGBT7 series, housed in an EasyPACK™ 2B package. It features a collector-emitter voltage of 1200 V and a nominal continuous collector current of 100 A at 25°C. The typical saturation voltage is 1.5 V, with a maximum operating junction temperature of 175°C. The module utilizes PressFIT contact technology for mounting and includes an integrated NTC thermistor.
Feature Summary
- Utilizes TRENCHSTOP™ IGBT7 and emitter controlled 7 diode technology for optimized switching performance.
- Features PressFIT contact technology to ensure reliable connection and high power density.
- Includes an integrated NTC thermistor for precise thermal monitoring within the module.
- Designed for overload operation up to 175°C junction temperature.
Applications
- Auxiliary inverters
- Servo drives
- Motor drives
- Air conditioning systems
- UPS systems
Procurement Notes
Verify the specific ordering suffix BOMA1 against official documentation to confirm exact configuration details. Ensure compatibility with recommended gate drivers listed by the manufacturer. Confirm that the application environment meets the industrial qualification standards specified in the datasheet before finalizing procurement.
Selection Notes
Select this module for applications requiring moderate switching frequencies and high efficiency. Consider the 1200 V rating and 100 A current capacity for appropriate load matching. Evaluate the thermal resistance values provided in the datasheet to design an adequate heat sink solution for the intended operating conditions.
Part Context
This component belongs to the Infineon TRENCHSTOP™ IGBT7 family, which employs micro-pattern trench technology. It is part of the EasyPACK™ 2B series, designed for compact designs with high power density. The module integrates both IGBTs and diodes in a six-pack topology suitable for three-phase inverter applications.
Replacement Considerations
Consult official replacement guides for compatible modules within the same voltage and current ratings. Verify mechanical dimensions and pinout compatibility if substituting with other EasyPACK™ variants. Ensure thermal characteristics match the existing system design requirements.
