FS13MR12W2M1HC55BPSA1

$150.79

Description：LOW POWER EASY
Series：-

SKU:9feec6ecdaff Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER EASY
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：-
Vce(on) (Max) @ Vge, Ic：-
Input：-
NTC Thermistor：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：-
Current - Collector (Ic) (Max)：-
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

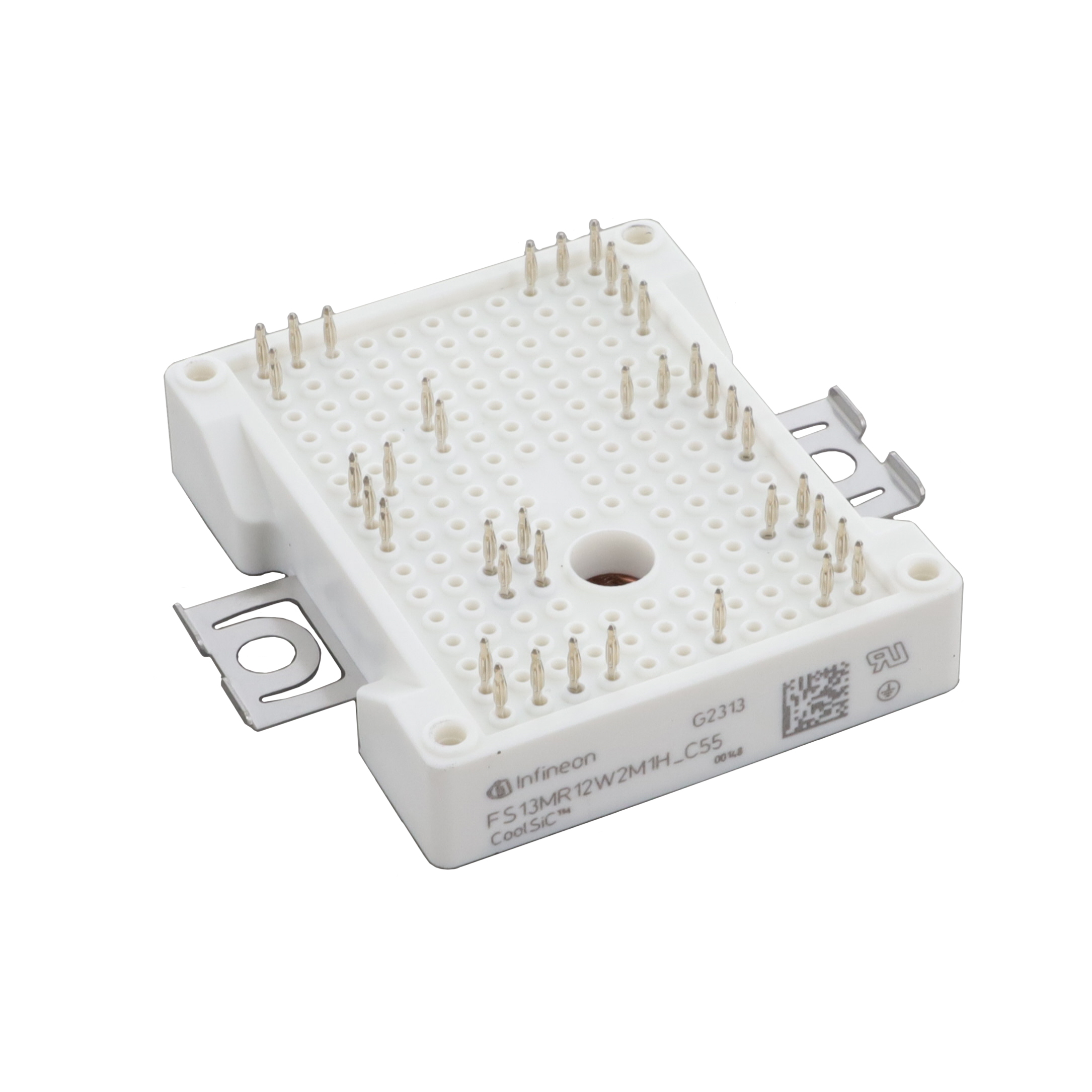

FS13MR12W2M1HC55BPSA1

Overview

The FS13MR12W2M1H_C55 is a CoolSiC™ Trench MOSFET six-pack module in the EasyPACK™ package. It features a 1200 V drain-source voltage and a continuous DC drain current of 62.5 A at 175 °C junction temperature. The device utilizes PressFIT contact technology and an AlN substrate for low thermal resistance. Key electrical parameters include a maximum on-resistance of 21.7 mΩ at 150 °C, a typical gate charge of 0.2 µC, and a stray inductance of 13 nH. An integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C provides temperature monitoring.

Feature Summary

Six-pack configuration utilizing CoolSiC™ Trench MOSFET technology
PressFIT contact technology for robust mechanical mounting
AlN substrate providing low thermal resistance
Integrated NTC temperature sensor for thermal management

Applications

High-frequency switching applications
Motor drives
UPS systems
DC/DC converters
EV DC chargers

Procurement Notes

Verify the specific ordering suffix C55 to confirm the inclusion of PressFIT contacts and the integrated NTC sensor. Ensure compatibility with recommended Infineon gate drivers as specified in the datasheet. Confirm that the industrial qualification meets IEC 60747, 60749, and 60068 standards for the intended application environment.

Selection Notes

Select this module for designs requiring high switching frequencies and low inductive layouts. Consider the 1200 V rating and 62.5 A continuous current capability against thermal constraints. Evaluate the 13 nH stray inductance for high-speed switching performance. Verify that the operating junction temperature range of -40 °C to 150 °C aligns with system requirements.

Part Context

This component belongs to the Infineon CoolSiC™ M1H series within the EasyPACK™ family. It represents a silicon carbide power module designed for industrial efficiency. The six-pack topology allows for three-phase bridge configurations or other multi-switch arrangements in power electronics systems.
