FS150R12N2T7B15BPSA1

Overview

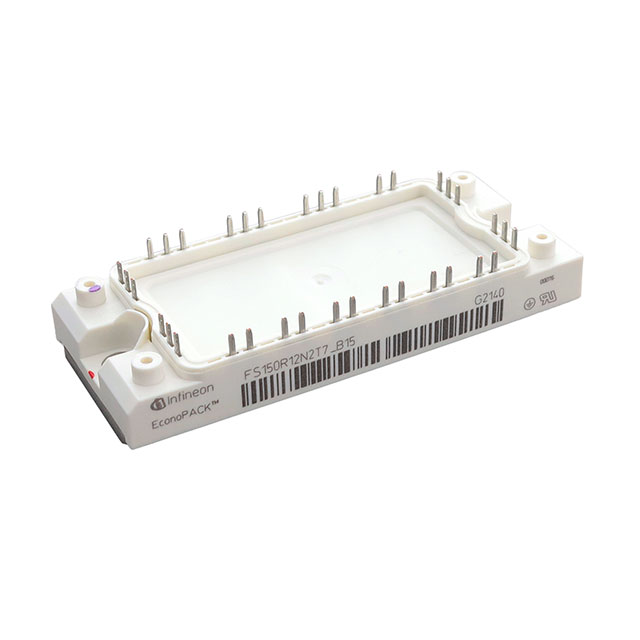

The FS150R12N2T7_B15 is an EconoPACK™2 IGBT module featuring TRENCHSTOP™ IGBT7 technology and emitter-controlled diodes. It provides a collector-emitter voltage of 1200 V, a nominal continuous collector current of 150 A, and a repetitive peak current of 300 A. The module integrates an NTC thermistor with a rated resistance of 5 kΩ at 25°C. Electrical characteristics include a typical saturation voltage of 1.55 V and a forward voltage of 1.72 V for the diode. Thermal management utilizes an Al2O3 substrate and copper base plate, achieving a junction-to-case thermal resistance of 0.293 K/W per IGBT.

Feature Summary

• Integrates seventh-generation TRENCHSTOP™ IGBT7 and emitter-controlled diode technology for optimized switching performance.
• Includes an integrated NTC temperature sensor for precise thermal monitoring within the module.
• Constructed with solder contact technology on an Al2O3 substrate to ensure high power and thermal cycling capability.

Applications

• Motor drives
• Auxiliary inverters
• Servo drives

Procurement Notes

Verify component authenticity by cross-referencing the unique material number and date code printed on the module label against official Infineon databases. Ensure that the ordering suffix matches the specific technical configuration required for the application. Confirm compliance with industrial qualification standards prior to integration into final equipment designs.

Selection Notes

Select this module for industrial applications requiring robust thermal cycling endurance and low conduction losses. Evaluate the gate resistor requirements to manage switching speeds and minimize electromagnetic interference. Consider the maximum operating temperature limits and overload conditions when designing the cooling system to maintain junction temperatures within safe operational boundaries.

Part Context

This component belongs to the EconoPACK™2 series, designed for compact power conversion systems. It represents the seventh generation of TRENCHSTOP™ technology, focusing on efficiency improvements for variable speed drives. The package format facilitates easy integration into standard inverter topologies used in industrial automation.

Replacement Considerations

Consult official Infineon documentation for qualified alternative part numbers. Verify that any substitute maintains identical pinout configurations, voltage ratings, and thermal characteristics to ensure compatibility with existing PCB layouts and heatsinking solutions.

FAQ

Is this product qualified for automotive applications?

No, this product is not qualified according to the AEC Q100 or AEC Q101 documents of the Automotive Electronics Council.

What is the maximum allowable junction temperature under overload conditions?

The module supports operation up to 175°C, with temperatures above 150°C permitted specifically for overload conditions as detailed in application note AN 2018-14.

How does the module handle short-circuit events?

The module can withstand short-circuit currents of 530 A for up to 8 µs at a junction temperature of 150°C, and 500 A for up to 7 µs at 175°C.
