FS150R12N3T4B80BPSA1

$115.36

Description：LOW POWER ECONO AG-ECONO3B-431
Series：*

SKU:c672f237e491 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO AG-ECONO3B-431
Series：*
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：-
Vce(on) (Max) @ Vge, Ic：-
Input：-
NTC Thermistor：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：-
Current - Collector (Ic) (Max)：-
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

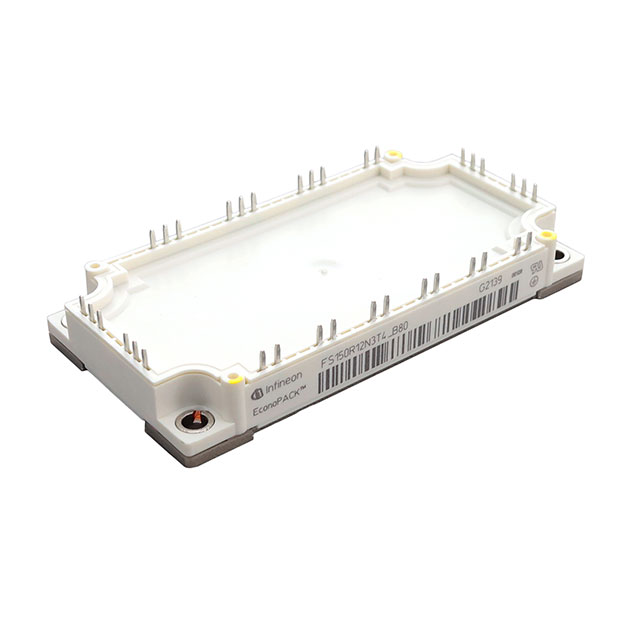

FS150R12N3T4B80BPSA1

Overview

The FS150R12N3T4B80BPSA1 is a silicon IGBT module manufactured by Infineon Technologies, belonging to the Trenchstop IGBT4 series. It features a 6-pack configuration with a maximum collector-emitter voltage of 1.2 kV and a continuous collector current of 150 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.75 V and operates within a junction temperature range of -40°C to +150°C. Packaged in Econo 3 format for screw mounting, it includes an integrated NTC thermistor for thermal monitoring.

Feature Summary

Incorporates Trenchstop IGBT4 technology for optimized switching performance
Integrated NTC thermistor enables precise thermal management
Econo 3 package design supports robust screw-mount installation

Applications

Three-phase inverter circuits
Industrial motor drives
Uninterruptible power supplies (UPS)

Procurement Notes

Verify the specific suffix B80 against official datasheets to confirm pinout or variant details. Confirm RoHS compliance status and check for alternative suffixes like BOSA1 if sourcing constraints exist. Ensure thermal interface materials match the Econo 3 mounting requirements.

Selection Notes

Select this component for applications requiring 1.2 kV blocking capability and 150 A current handling. Compare the 1.75 V saturation voltage against system efficiency targets. Verify that the +150°C maximum junction temperature aligns with the intended thermal design and ambient operating conditions.

Part Context

This part belongs to the FS150R12 family of Infineon IGBT modules. It shares core electrical specifications with variants such as FS150R12KT4 and FS150R12N3T7BPSA1, differing primarily in packaging suffixes and specific manufacturing revisions documented in official release notes.

Replacement Considerations

FS150R12KT4BOSA1 is a confirmed substitute within the same product family. FS150R12N3T7BPSA1 offers similar electrical ratings but may differ in thermal characteristics due to package variations.
