Product Detailed Parameters
- Description：IGBT MOD 1200V 460A 1650W
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 300A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：460 A
- Power - Max：1650 W
- Current - Collector Cutoff (Max)：3 mA
- Input Capacitance (Cies) @ Vce：18.5 nF @ 25 V
Download product information
Overview

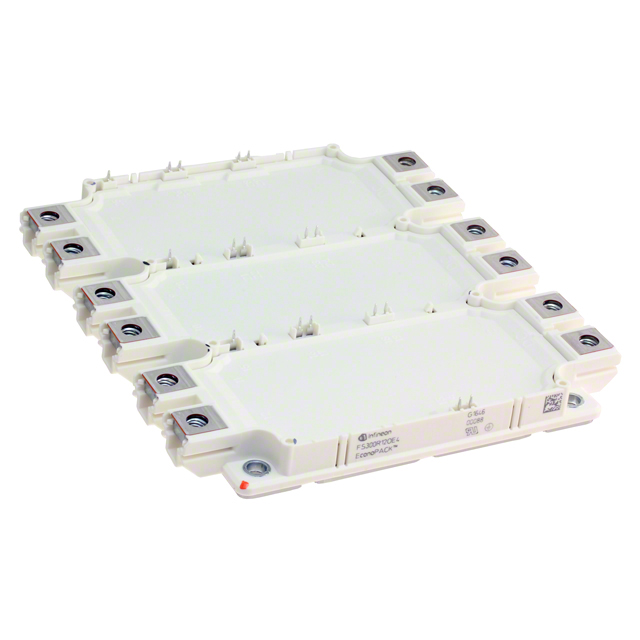

The FS300R12OE4BOSA1 is a six-pack IGBT module utilizing Trench/Fieldstop IGBT4 technology and an Emitter Controlled HE diode. It features PressFIT connection technology and an integrated NTC temperature sensor within the EconoPACK+ housing. The collector-emitter voltage (VCES) is rated at 1200 V, with a continuous DC collector current of 300 A at TC=100°C and 460 A at TC=25°C. The repetitive peak collector current reaches 600 A. Total power dissipation is 1650 W at TC=25°C. The operating junction temperature range spans from -40°C to +150°C.
Feature Summary
- High short-circuit capability with self-limiting short-circuit current
- Robustness against high surge currents and mechanical stress
- Integrated NTC temperature sensor for thermal monitoring
- Isolated base plate with PressFIT contact technology
Applications
- Elevator systems
- High-power converters
- Commercial agriculture vehicles
- Motor drives
- Solar applications
- UPS systems
Procurement Notes
Verify the specific ordering suffix BOSA1 against official Infineon documentation to confirm exact manufacturing lot codes or regional compliance variations. Ensure that the component matches the required datasheet revision level for your design. Confirm RoHS compliance status through the manufacturer's latest environmental declarations before finalizing procurement orders.
Selection Notes
Select this module when designing circuits requiring high short-circuit robustness and reliable operation in industrial environments. Consider the 1200 V rating and 300 A continuous current capacity for appropriate thermal management solutions. Evaluate the PressFIT mounting method compatibility with your assembly equipment and verify that the operating junction temperature limits align with your system's cooling capabilities.
Part Context
This component belongs to the Infineon EconoPACK+ series, designed for high-power density applications. It integrates Trench/Fieldstop IGBT4 technology with Emitter Controlled HE diodes. The module utilizes PressFIT technology for secure electrical connections without soldering. It is engineered for demanding industrial conditions, offering high mechanical robustness and efficient thermal performance.
Replacement Considerations
FS300R12OE4
FAQ
What is the maximum short-circuit time allowed for this module?
The module supports a short-circuit time of up to 10 µs.
Does the module include an integrated temperature sensor?
Yes, it includes an integrated NTC temperature sensor with a nominal resistance of 5 kΩ at 25°C.
What is the isolation test voltage rating?
The isolation test voltage is rated at 2.5 kV RMS for 1 minute at 50 Hz.
