Product Detailed Parameters
- Description：LOW POWER EASY
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

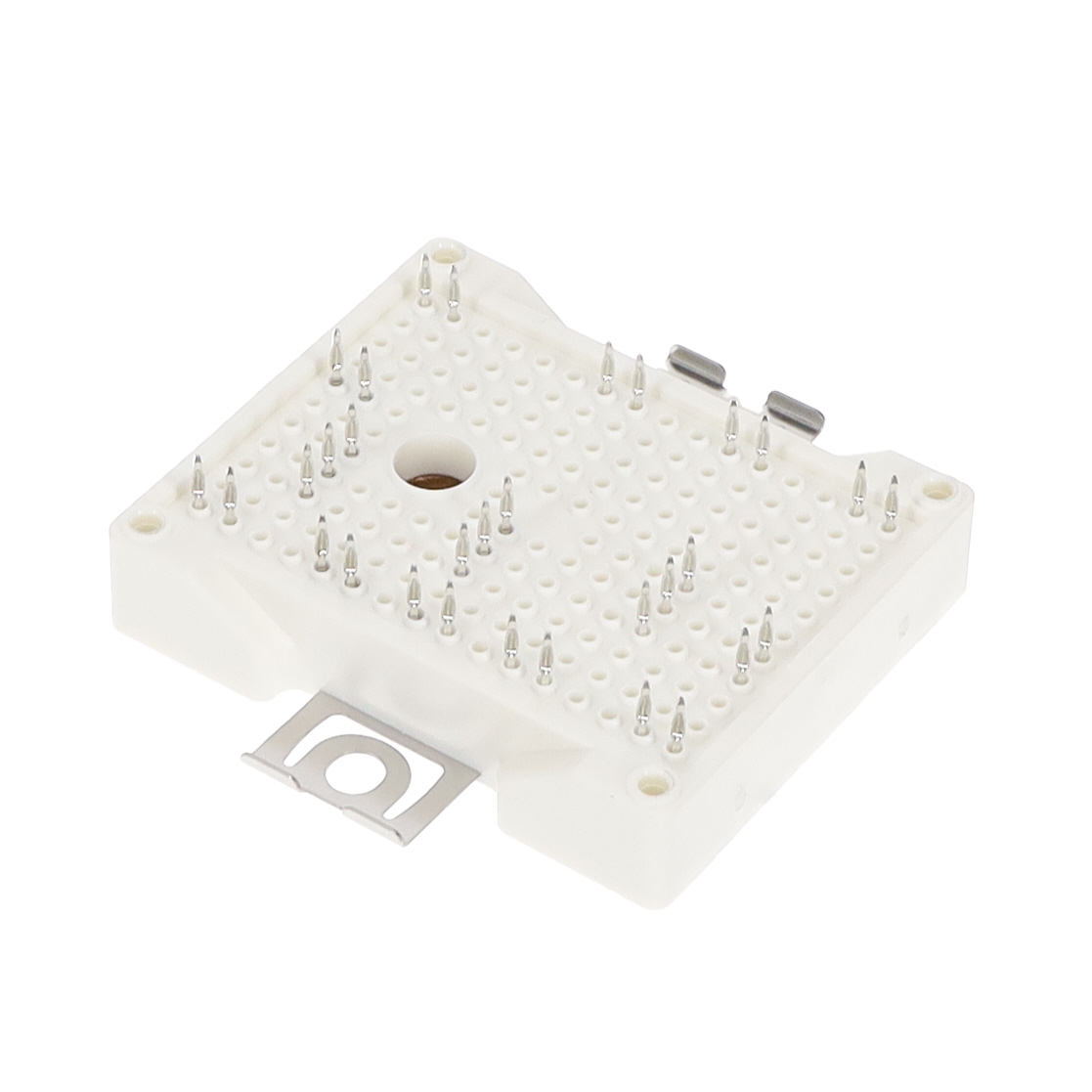

The FS3L35R07W2H5C40BPSA1 is a three-level IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ 7 technology. It features a 650 V collector-emitter voltage rating and a continuous collector current of 35 A at 25°C. The device employs an EasyPACK® S package design for compact integration. Key electrical parameters include a typical saturation voltage of approximately 1.8 V and a maximum gate-emitter voltage of ±20 V. The module supports a maximum operating junction temperature of 175°C and includes integrated thermal monitoring capabilities via an NTC thermistor.
Feature Summary
- Three-level topology designed for reduced switching losses and improved electromagnetic compatibility in power conversion circuits.
- TRENCHSTOP™ 7 technology provides enhanced short-circuit ruggedness and superior controllability compared to previous generations.
- Integrated NTC thermistor enables reliable thermal monitoring and protection within the power module assembly.
Applications
- Industrial motor drives and variable frequency drives requiring high efficiency.
- Uninterruptible power supplies (UPS) and solar photovoltaic inverters.
- Air conditioner power factor correction topologies.
Procurement Notes
Verify the specific suffix C40 against official Infineon documentation to confirm pinout and terminal configuration details. Ensure that the ordering information matches the exact datasheet revision for this part number to avoid integration errors with compatible gate drivers or cooling systems.
Selection Notes
Select this component for applications demanding high reliability in moderate switching frequency environments. Consider the thermal resistance characteristics and the required heatsinking interface when designing the mechanical assembly. Validate that the control circuitry supports the specific gate drive requirements of the TRENCHSTOP™ 7 family.
Part Context
This module belongs to the EasyPACK® S series, which offers a compact form factor suitable for modern power electronics designs. It represents the third-level variant within the TRENCHSTOP™ 7 lineup, balancing current handling capabilities with low conduction losses for efficient energy conversion.
Replacement Considerations
Direct substitutes are not explicitly confirmed in public sources. Evaluate other Infineon three-level modules within the same voltage and current ratings, ensuring compatibility with the EasyPACK® S footprint and gate drive specifications before implementation.
