FS50R06KE3BPSA1

Overview

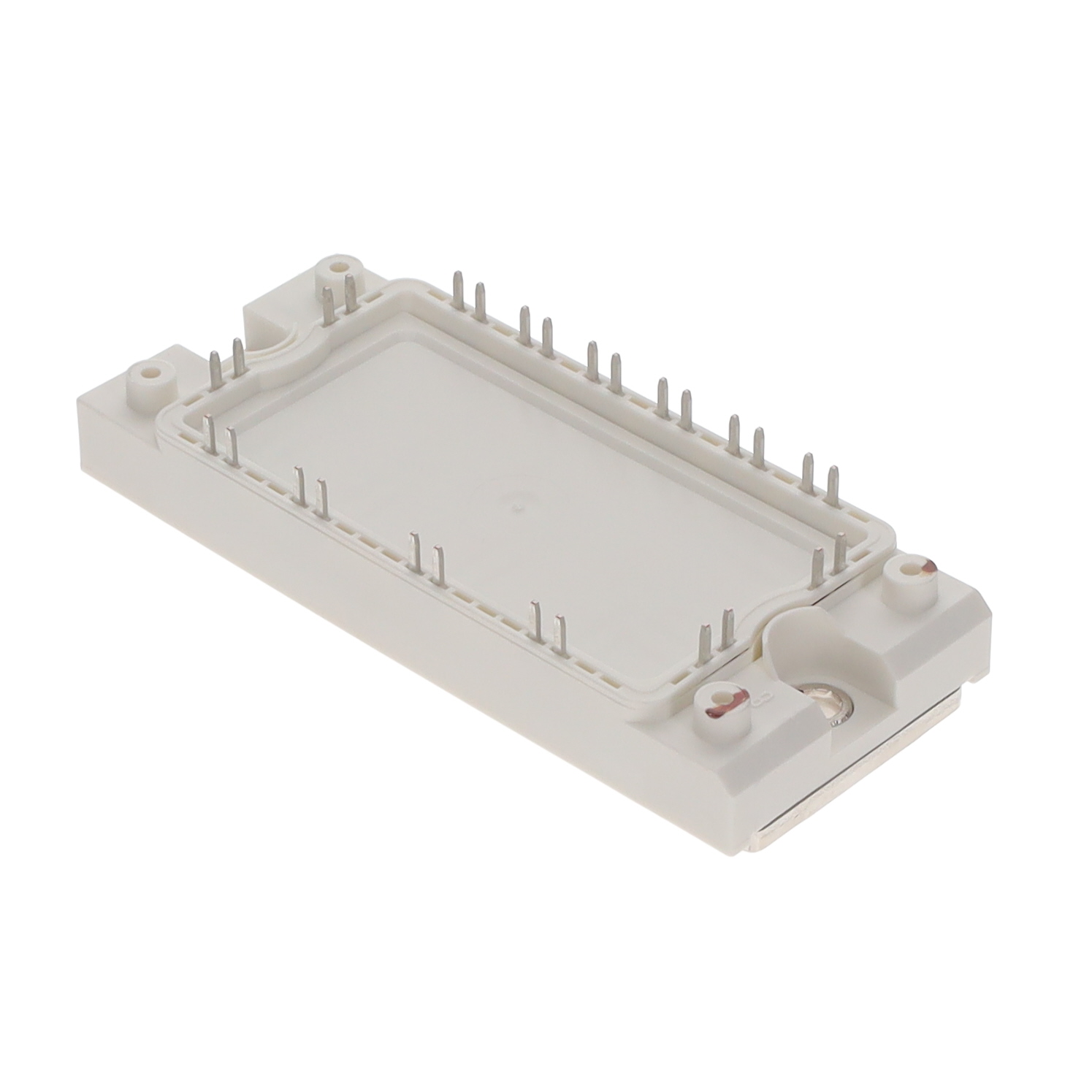

The FS50R06KE3BPSA1 is a six-pack IGBT module from Infineon Technologies, utilizing Trenchstop IGBT3 and Emitter Controlled3 diode technology. It features a collector-emitter voltage of 600 V and a continuous DC collector current of 50 A at 80°C case temperature. The typical collector-emitter saturation voltage is 1.45 V at 25°C, while the diode forward voltage is 1.55 V. The module includes an integrated NTC thermistor with a nominal resistance of 5 kΩ at 25°C. Total power dissipation reaches 190 W at 25°C. Key thermal resistances are 0.80 K/W for junction-to-case per IGBT and 1.20 K/W per diode.

Feature Summary

• Integrates fast trench/fieldstop IGBT3 and Emitter Controlled3 diodes within a single package.
• Includes an embedded NTC thermistor for reliable internal temperature monitoring.
• Features low stray inductance design to minimize switching losses and voltage overshoots.
• Provides high short-circuit capability with robust reverse bias safe operating area.

Applications

• Industrial motor drives and servo systems
• Uninterruptible power supplies (UPS)
• High-frequency welding inverters

Procurement Notes

Verify the specific ordering suffix BPSA1 against official documentation to confirm packaging and reel specifications. Ensure that the component matches the required industrial quality grade and check for RoHS compliance status as defined in the manufacturer's datasheet before finalizing procurement orders.

Selection Notes

Select this module for applications requiring 600 V blocking capability and up to 50 A continuous current. Evaluate the thermal resistance values to ensure adequate heatsinking for the intended power dissipation. Confirm that the gate drive requirements align with the specified threshold voltages and charge parameters for optimal switching performance.

Part Context

This component belongs to the EconoPACK3 series, designed for compact integration in modern power electronics. It utilizes Infineon's Trenchstop IGBT3 technology combined with Emitter Controlled3 diodes to balance switching speed and conduction losses effectively for medium-power industrial applications.

Replacement Considerations

Consult official replacement lists for updated versions or alternative packages within the same voltage and current class. Verify pin compatibility and thermal characteristics when considering substitutes from other manufacturers or different series within the same product family.

FAQ

What is the maximum short-circuit withstand time for this module?

The module can withstand a short circuit for up to 8 µs at 25°C junction temperature and 6 µs at 150°C junction temperature.

Does the module include built-in temperature sensing?

Yes, it integrates an NTC thermistor with a nominal resistance of 5 kΩ at 25°C for accurate temperature monitoring.

What is the typical turn-off energy loss at 150°C?

At a junction temperature of 150°C, the typical turn-off energy loss is 1.70 mJ under standard test conditions.
