FS50R12KE3BPSA1

$65.17

Description：LOW POWER ECONO AG-ECONO2B-311
Series：-

SKU:dca08826d3c4 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO AG-ECONO2B-311
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：Full Bridge Inverter
Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 50A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-ECONO2B
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：75 A
Power - Max：270 W
Current - Collector Cutoff (Max)：5 mA
Input Capacitance (Cies) @ Vce：3.5 nF @ 25 V

Download product information

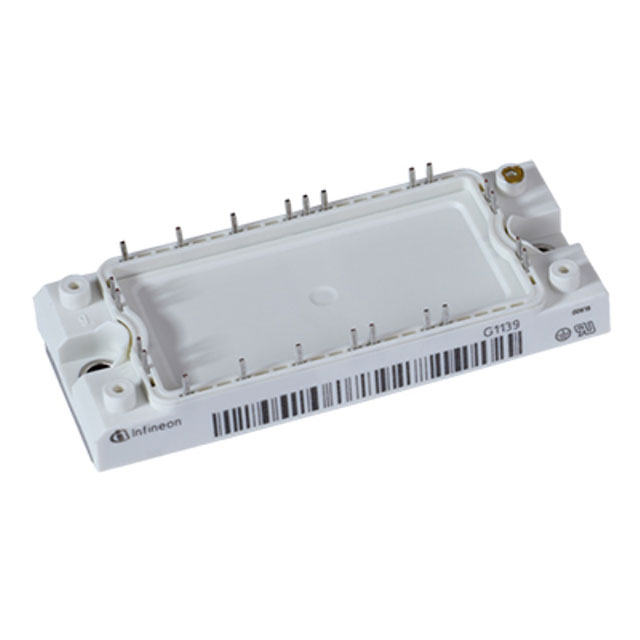

FS50R12KE3BPSA1

Overview

The FS50R12KE3BPSA1 is a six-pack IGBT module from Infineon Technologies, rated for 1200 V collector-emitter voltage and 50 A continuous collector current at 25°C. It features a typical saturation voltage of 1.7 V and supports a repetitive peak forward current of 100 A. The module provides a total power dissipation of 270 W and operates within a junction temperature range of -40°C to +125°C. It includes an integrated NTC thermistor with a nominal resistance of 493 Ω at 25°C for thermal monitoring.

Feature Summary

Six-pack topology integrating three IGBTs and three anti-parallel diodes in a single package
Integrated NTC thermistor for precise internal temperature monitoring
High short-circuit capability supporting operation up to 10 µs
Robust reverse bias safe operating area (RBSOA) for reliable switching

Applications

Three-phase motor drives and inverters
Industrial power supplies and converters
Uninterruptible power supply (UPS) systems
Induction heating equipment

Procurement Notes

Verify the specific ordering suffix BPSA1 against official documentation to confirm compliance with RoHS directives and lead time requirements. Confirm that the component matches the exact datasheet revision referenced in procurement specifications to ensure electrical parameter alignment.

Selection Notes

Select this module based on the required 1200 V blocking voltage and 50 A continuous current rating. Ensure the cooling system can handle the 270 W power dissipation while maintaining the case temperature within specified limits. Verify gate drive compatibility with the ±15 V recommended operating voltage.

Part Context

This component belongs to the EconoPACK™ 2 series, designed for industrial applications requiring high power density. It utilizes Trenchstop™ IGBT3 technology to optimize switching losses and conduction characteristics. The module is housed in a screw-mount package suitable for heatsink integration.

Replacement Considerations

Consult official replacement guides for cross-referencing. Direct substitutes may include variants with different current ratings or packaging styles within the same voltage class.
