Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2B-311
- Series：EconoPACK™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Full Bridge Inverter
- Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 50A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：280 W
- Current - Collector Cutoff (Max)：5 mA
- Input Capacitance (Cies) @ Vce：3.5 nF @ 25 V
Download product information
Overview

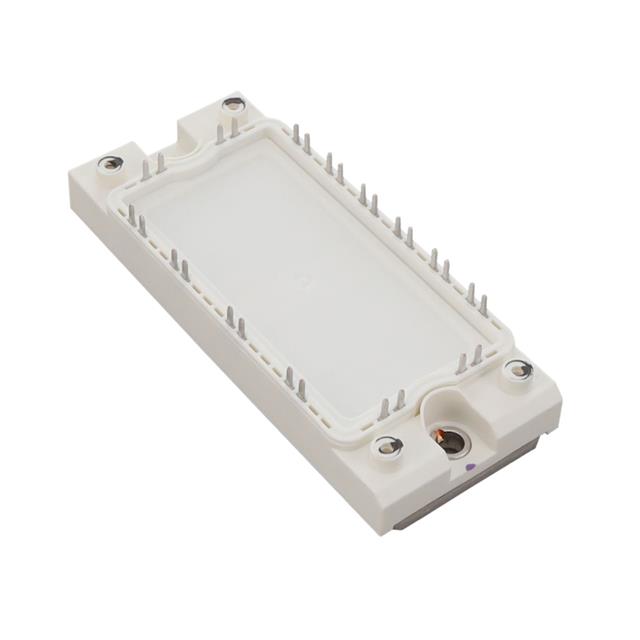

The FS50R12KT3BPSA1 is a six-pack IGBT module from Infineon Technologies, utilizing Trenchstop IGBT3 technology. It features a collector-emitter voltage of 1200 V and a continuous DC collector current of 75 A at 25°C (50 A at 80°C). The saturation voltage is typically 1.7 V at 25°C. Total power dissipation reaches 280 W at 25°C. Operating temperature ranges from -40°C to +125°C. The module includes an integrated NTC thermistor with a nominal resistance of 5 kΩ at 25°C.
Feature Summary
- Integrates fast trench/fieldstop IGBT3 switches with emitter-controlled high-efficiency diodes for optimized switching performance.
- Incorporates an internal gate resistor to simplify driver design and improve electromagnetic compatibility.
- Features EconoPACK™2 packaging with a copper baseplate for efficient thermal management and mechanical stability.
Applications
- Industrial motor drives
- Uninterruptible power supplies (UPS)
- Induction heating systems
Procurement Notes
Verify the specific ordering suffix BPSA1 against official documentation to confirm RoHS compliance status and manufacturing origin. Confirm that the component matches the exact datasheet revision referenced in procurement records. Ensure storage conditions remain within the specified temperature range prior to assembly.
Selection Notes
Select this module for applications requiring robust short-circuit withstand capability up to 200 A. Evaluate thermal resistance values carefully when designing heatsink solutions. Consider the internal gate resistance value when calculating required gate drive currents and switching speeds.
Part Context
This component belongs to the FSXR12K3G series, representing Infineon's Trenchstop IGBT3 generation. It utilizes the EconoPACK™2 form factor, designed for compact power electronics. The technology combines low conduction losses with controlled switching behavior suitable for industrial frequency ranges.
Replacement Considerations
Direct replacements include the FP50R12KT3 and FS50R12W2T7BPSA1. Verify pinout compatibility and thermal interface requirements before substitution. Check if updated technology generations offer improved switching characteristics for specific application needs.
