Product Detailed Parameters
- Description：LOW POWER ECONO
- Series：EconoPACK™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Full Bridge Inverter
- Vce(on) (Max) @ Vge, Ic：1.8V @ 15V, 50A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：50 A
- Power - Max：-
- Current - Collector Cutoff (Max)：10 µA
- Input Capacitance (Cies) @ Vce：11.1 nF @ 25 V
Download product information
Overview

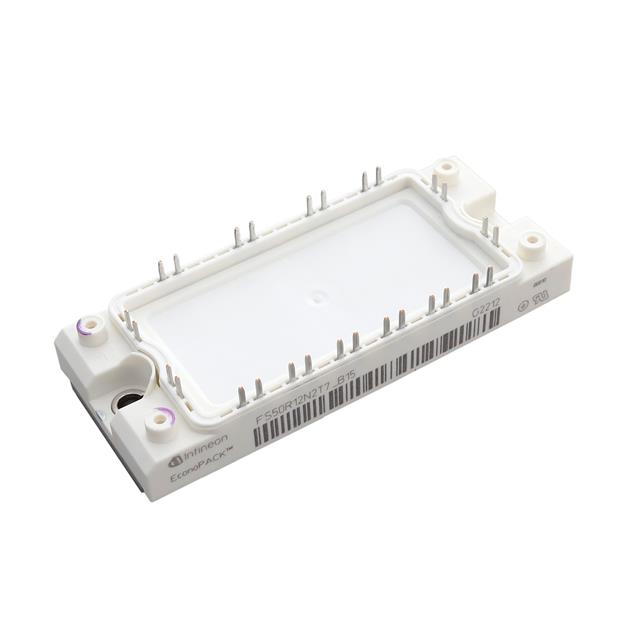

The FS50R12N2T7_B15 is a TRENCHSTOP™ IGBT7 and emitter controlled 7 diode module in an EconoPACK™2 package. It features a collector-emitter voltage of 1200 V, a continuous DC collector current of 50 A at 115 °C case temperature, and a repetitive peak collector current of 100 A. The typical saturation voltage is 1.50 V at 25 °C junction temperature. Operating junction temperatures range from -40 °C to 175 °C. The module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C.
Feature Summary
- Utilizes TRENCHSTOP™ IGBT7 technology for low saturation voltage and high thermal cycling capability.
- Integrates an NTC temperature sensor for reliable thermal monitoring within the circuit.
- Constructed with a copper base plate and Al2O3 substrate to ensure low thermal resistance.
Applications
- Auxiliary inverters
- Motor drives
- Servo drives
Procurement Notes
Verify the specific B15 suffix against official Infineon documentation to confirm mechanical or electrical variations compared to standard versions. Ensure compliance with industrial qualification standards such as IEC 60747 and IEC 60068 before integration into final designs.
Selection Notes
Select this component for applications requiring robust overload operation up to 175 °C. Consider the 1200 V rating and 50 A continuous current capacity when designing power stages. Verify that the mounting torque meets the specified 3 to 6 Nm requirement for secure installation.
Part Context
This part belongs to the EconoPACK™2 series utilizing TRENCHSTOP™ IGBT7 technology. It is designed for industrial applications and offers high power density. The module integrates both IGBT and diode chips on a single substrate to simplify assembly and improve thermal performance.
Replacement Considerations
Consult official Infineon substitution guides for verified alternatives. Cross-referencing requires matching voltage, current ratings, and package dimensions to ensure compatibility without redesigning the host system.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175 °C, allowing for overload operation above 150 °C under specific conditions.
Does the module include a temperature sensor?
Yes, it features an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C.
What is the isolation test voltage?
The isolation test voltage is 2.5 kV RMS at 50 Hz for 1 minute.
