Product Detailed Parameters
- Description：LOW POWER EASY AG-EASY2B-711
- Series：EasyPACK™, TRENCHSTOP™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：-
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-EASY2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：50 A
- Power - Max：-
- Current - Collector Cutoff (Max)：7.9 µA
- Input Capacitance (Cies) @ Vce：11.1 nF @ 25 V
Download product information
Overview

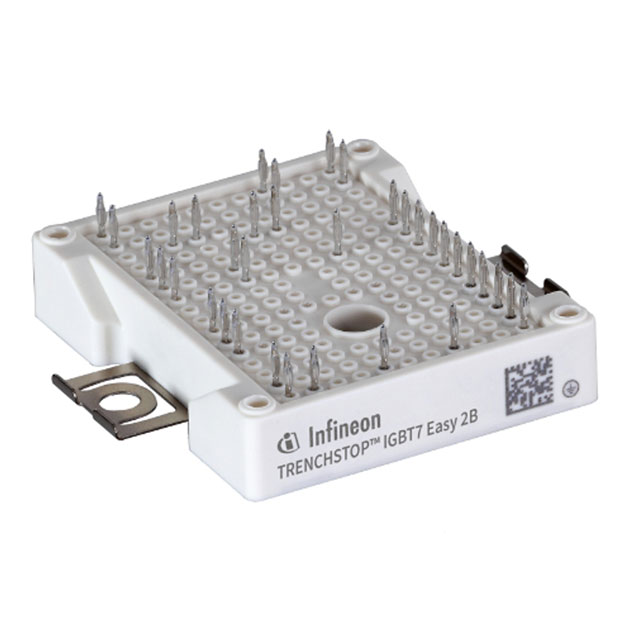

The FS50R12W2T7BPSA1 is a six-pack IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a collector-emitter voltage of 1200 V and a nominal continuous collector current of 50 A at 25°C, with a repetitive peak current capability of 100 A. The saturation voltage is typically 1.5 V at 25°C. Operating within a junction temperature range of -40°C to +175°C, the device incorporates an integrated NTC thermistor rated at 5 kΩ at 25°C for thermal monitoring. It employs solder contact technology within a compact EasyPACK™ housing.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 and emitter-controlled diodes for optimized switching performance.
- Includes an embedded NTC thermistor for precise internal temperature monitoring.
- Features low thermal resistance via an Al2O3 substrate and solder contact technology.
- Provides high insulation strength with 2.5 kV AC isolation testing.
Applications
- Auxiliary inverters
- Motor drives
- UPS systems
- Air conditioning units
- Servo drives
Procurement Notes
Verify the specific ordering suffix BPSA1 against official documentation to confirm mechanical mounting details and terminal configuration. Ensure that the component matches the required industrial qualification standards defined in IEC 60747, 60749, and 60068 before integration into the final design.
Selection Notes
Select this module for applications requiring robust overload capabilities up to 175°C and high power density. Consider the 50 A continuous rating and 1200 V blocking voltage when designing circuits for motor control or inverter topologies. Evaluate the thermal management requirements based on the specified junction-to-heat sink thermal resistance values.
Part Context
This component belongs to the EasyPACK™ series and utilizes the TRENCHSTOP™ IGBT7 generation. It is designed for industrial applications, offering a balance of electrical performance and mechanical reliability. The module integrates both IGBTs and diodes in a single six-pack configuration.
Replacement Considerations
Consult official replacement lists for variants such as FS50R12W2T7 or FS50R12W2T7BOMA1. Verify pinout compatibility and thermal characteristics before substituting any alternative part numbers.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175°C.
Does the module include thermal monitoring?
Yes, it includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C.
What is the typical forward voltage of the integrated diode?
The typical forward voltage is 1.72 V at 25°C with a forward current of 50 A.
