Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2B-311
- Series：EconoPACK™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Full Bridge Inverter
- Vce(on) (Max) @ Vge, Ic：1.9V @ 15V, 75A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：250 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：4.6 nF @ 25 V
Download product information
Overview

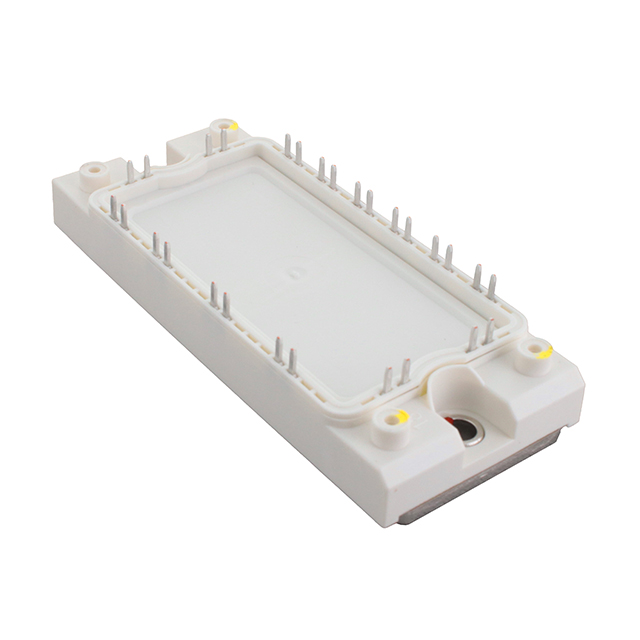

The FS75R06KE3BPSA1 is a six-pack IGBT module utilizing Trench/Fieldstop IGBT³ and Emitter Controlled³ diode technology. It features a collector-emitter voltage of 600 V and a continuous DC collector current of 75 A at 70°C case temperature. The typical saturation voltage is 1.45 V, with a forward voltage of 1.55 V for the integrated diode. Packaged in EconoPACK™, it includes an NTC thermistor rated at 5 kΩ. Maximum junction temperature reaches 150°C during switching operations.
Feature Summary
- Integrates fast Trench/Fieldstop IGBT³ and Emitter Controlled³ diodes within a single package.
- Includes an embedded NTC thermistor for precise thermal monitoring.
- Designed for industrial applications requiring robust power conversion capabilities.
Applications
- Industrial motor drives
- Uninterruptible power supplies (UPS)
- High-frequency welding equipment
Procurement Notes
Verify component authenticity by cross-referencing the manufacturer's datasheet revision history and official part numbering conventions. Confirm that the specific BPSA1 suffix aligns with your required RoHS compliance standards and packaging specifications before finalizing orders.
Selection Notes
Evaluate the module based on its 600 V blocking capability and 75 A continuous current rating to ensure compatibility with system voltage levels. Consider the thermal resistance values and the necessity of the integrated NTC sensor for accurate junction temperature management in your specific cooling design.
Part Context
This component belongs to Infineon's EconoPACK™ series, which provides compact and efficient solutions for power electronics. The use of IGBT³ technology indicates a focus on optimized switching losses and conduction characteristics compared to earlier generations.
Replacement Considerations
Consult official replacement lists for direct equivalents. Verify pinout compatibility and electrical parameters when considering alternative models from the same or different manufacturers.
FAQ
What is the maximum repetitive peak reverse voltage for the integrated diode?
The maximum repetitive peak reverse voltage (VRRM) for the diode is 600 V.
Does the module include internal gate resistance?
No, the internal gate resistor (RGint) is specified as 0 Ω.
What is the nominal resistance value of the integrated NTC thermistor?
The rated resistance (R25) of the NTC thermistor at 25°C is 5.00 kΩ.
