Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2B-411
- Series：EconoPACK™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 75A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：-
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：4.3 nF @ 25 V
Download product information
Overview

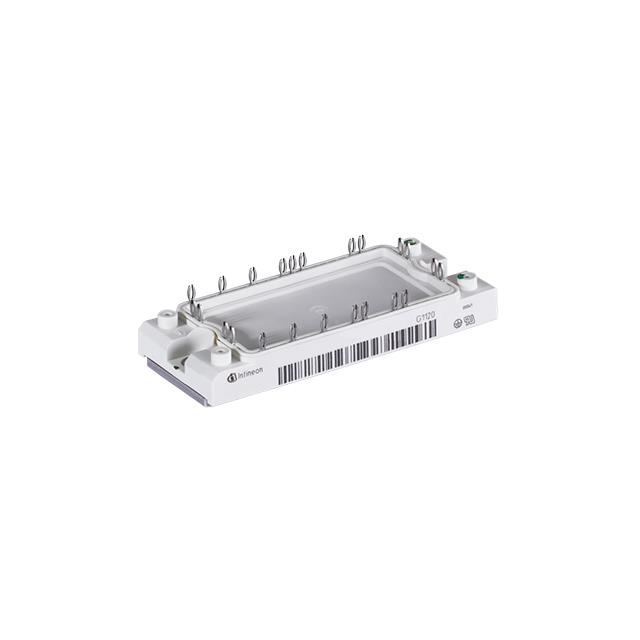

The FS75R12KT4B11BPSA1 is a six-pack IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT4 technology and Emitter Controlled 4 diodes. It features PressFIT connection technology and an integrated NTC temperature sensor within the EconoPACK™2 package. The collector-emitter voltage (VCES) is rated at 1200 V, with a nominal continuous DC collector current (IC nom) of 75 A and a repetitive peak collector current (ICRM) of 150 A. The typical collector-emitter saturation voltage (VCEsat) is 1.85 V at 25°C. Total power dissipation reaches 385 W at 25°C case temperature. Operating junction temperatures range from -40°C to 150°C.
Feature Summary
- Trench/Fieldstop IGBT4 technology combined with Emitter Controlled 4 diodes for optimized switching performance
- PressFIT contact technology providing high mechanical stability and thermal cycling capability
- Integrated NTC temperature sensor for precise thermal monitoring
- Al2O3 substrate with low thermal resistance and copper base plate
Applications
- Auxiliary Inverters
- Motor Drives
- Servo Drives
Procurement Notes
Verify the specific ordering suffix B11 against official documentation to confirm component specifications. Ensure that the required datasheet revision matches the intended application requirements. Confirm compliance with relevant industrial standards before finalizing procurement decisions.
Selection Notes
Select this module for applications requiring robust thermal cycling capability and reliable operation in motor drive environments. Consider the 1200 V rating and 75 A continuous current capacity when designing the power stage. Evaluate the need for PressFIT mounting versus traditional screw mounting based on assembly constraints.
Part Context
This component belongs to the EconoPACK™2 series, designed for industrial power electronics. It integrates advanced IGBT4 technology to balance conduction and switching losses effectively. The module is engineered for high reliability in demanding automotive and industrial traction applications.
Replacement Considerations
Consult official replacement lists for direct substitutes. Verify pinout compatibility and thermal characteristics when considering alternative modules from the same manufacturer or other vendors.
FAQ
What is the maximum repetitive peak collector current?
The maximum repetitive peak collector current (ICRM) is 150 A for a pulse duration of 1 ms.
Does the module include a temperature sensor?
Yes, the module features an integrated NTC temperature sensor with a rated resistance of 5 kΩ at 25°C.
What is the isolation test voltage?
The isolation test voltage (VISOL) is 2.5 kV RMS at 50 Hz for one minute.
