Product Detailed Parameters
- Description：IGBT MODULE LOW PWR ECONO2-6
- Series：EconoPACK™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

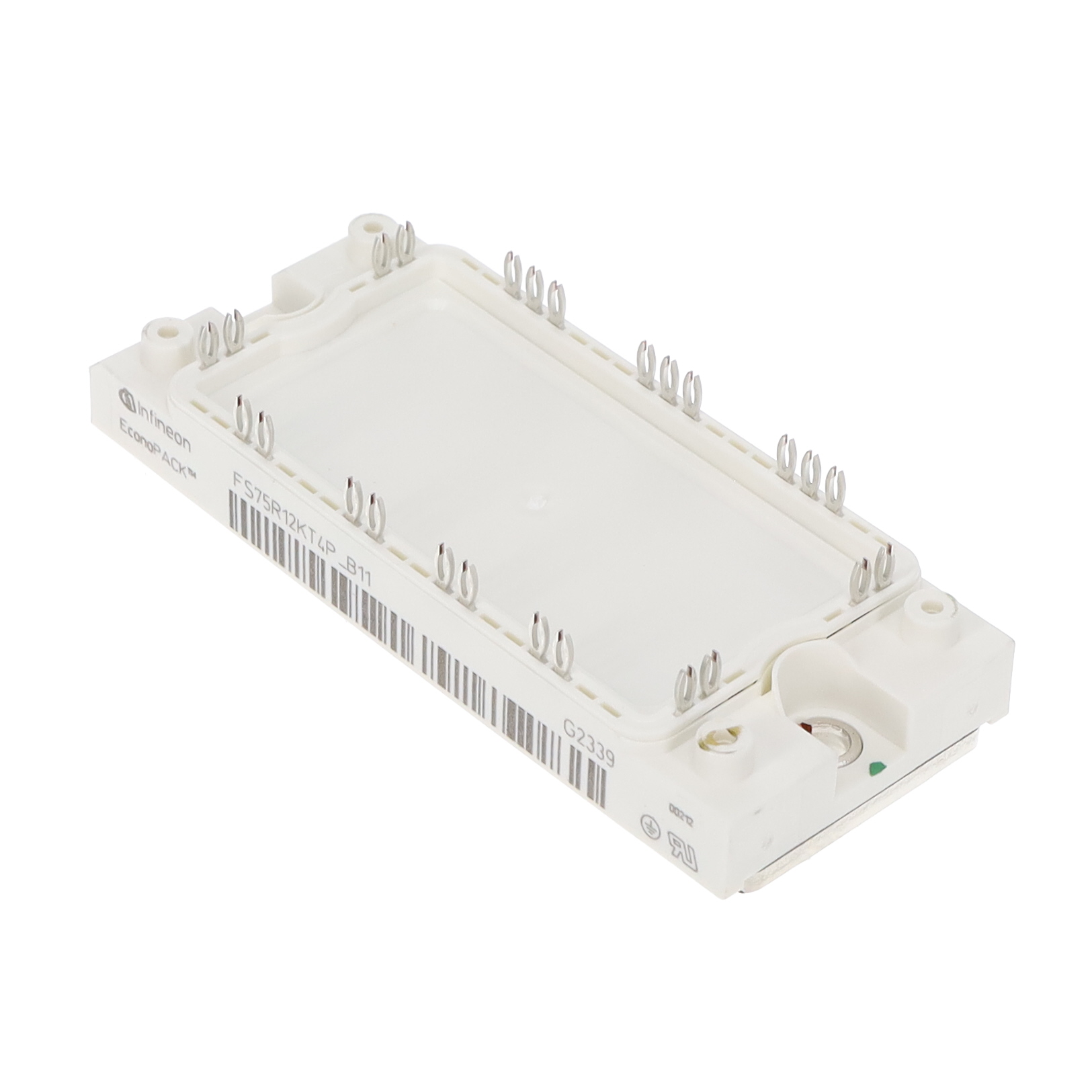

The FS75R12KT4PB11BPSA1 is a six-pack IGBT module from Infineon Technologies, rated at 1200 V and 75 A. It utilizes Trenchstop technology for optimized switching performance. The module features a typical saturated collector-emitter voltage (VCEsat) of 1.85 V and a forward voltage (VF) of 1.7 V at 25°C junction temperature. Packaged in the EconoPACK™ 2 form factor with dimensions of 45 mm width and 107.5 mm length, it is designed for industrial applications requiring high reliability and efficient power conversion.
Feature Summary
- Six-pack topology integrating multiple IGBTs and diodes for compact three-phase or multi-leg inverter designs.
- EconoPACK™ 2 packaging provides a standardized footprint suitable for automated assembly and efficient thermal management.
- Trenchstop technology ensures low conduction losses and controlled switching characteristics.
Applications
- Industrial motor drives
- Medium power inverters
- Uninterruptible power supplies (UPS)
Procurement Notes
Verify the complete part number including all suffixes to ensure correct configuration. Confirm RoHS compliance status through official documentation. Check for specific handling requirements regarding electrostatic discharge during storage and installation. Ensure compatibility with existing gate drive circuits and thermal interface materials before integration into the final design.
Selection Notes
Select this component for applications requiring a balance between current capacity and package size. The 1200 V rating suits medium-voltage systems. Consider the thermal resistance characteristics when designing heatsinking solutions. Verify that the six-pack configuration aligns with the circuit topology requirements compared to half-bridge or single-module alternatives.
Part Context
This module belongs to Infineon's EconoPACK™ series, widely used in industrial power electronics. The 'FS' prefix typically denotes a six-pack configuration within the product line. It represents a mature technology platform offering proven reliability for mass-produced industrial equipment and energy conversion systems.
Replacement Considerations
Direct pin-to-pin replacements may include other Infineon six-pack modules with similar voltage and current ratings, such as those from the FS75R12 series with compatible packaging. Cross-brand substitutions require careful evaluation of electrical parameters, thermal characteristics, and mechanical dimensions to ensure system compatibility.
