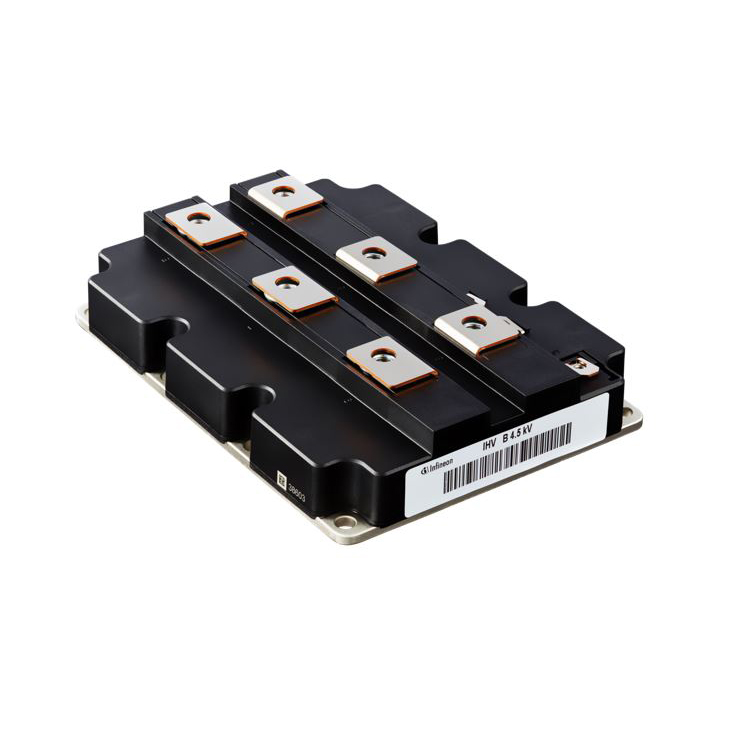

FZ1200R45HL4S7BPSA1

$1,655.84

Description：IHV IHM T
Series：-

SKU:7d37f16a7cfc Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IHV IHM T
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：3 Independent
Vce(on) (Max) @ Vge, Ic：2.55V @ 25V, 1.2kA
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：4300 V
Current - Collector (Ic) (Max)：1.2 kA
Power - Max：2400000 W
Current - Collector Cutoff (Max)：5 mA
Input Capacitance (Cies) @ Vce：223000 pF @ 25 V

Download product information

FZ1200R45HL4S7BPSA1

Overview

The FZ1200R45HL4S7BPSA1 is a triple configuration IGBT module from Infineon Technologies, belonging to the IHM-B product series. It utilizes silicon technology and features a maximum collector-emitter voltage of 4.3 kV with a continuous collector current of 1.2 kA at 25°C. The device exhibits a collector-emitter saturation voltage of 2.55 V and a gate-emitter leakage current of 400 nA. Maximum power dissipation is rated at 2.4 MW. The physical dimensions are 190 mm x 140 mm x 48 mm, designed for screw mount installation. Operating temperatures range from -40°C to +150°C, with a maximum gate-emitter voltage of 26.25 V.

Feature Summary

Triple IGBT configuration within the IHM-B module family
High short-circuit capability and robust construction
Designed for high DC stability in demanding environments

Applications

Traction systems
Photovoltaic inverters
Uninterruptible power supplies (UPS)

Procurement Notes

Verify the specific suffix S7 against official datasheets to confirm exact electrical characteristics and packaging details. Confirm RoHS compliance status through manufacturer documentation before integration. Ensure thermal interface materials match the specified mounting requirements for the 190 mm x 140 mm x 48 mm housing.

Selection Notes

Select this component for applications requiring high voltage isolation up to 4.3 kV and substantial current handling capacity. The triple configuration allows for complex circuit topologies within a single package. Evaluate thermal management solutions suitable for the 2.4 MW power dissipation rating and ensure the operating environment stays within the specified temperature limits.

Part Context

This part belongs to Infineon's High-Power (IHM) and High-Voltage (IHV) modules line, which emphasizes reliability and robustness. The IHM-B series is specifically engineered for industrial and traction applications, offering enhanced performance compared to standard modules. It represents a specialized solution for high-power density requirements.
