FZ2400R33HE4BPSA1

Overview

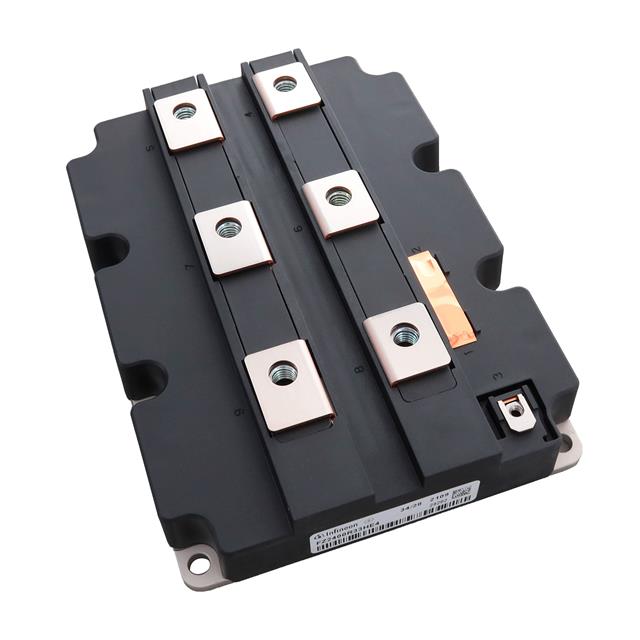

The FZ2400R33HE4BPSA1 is a single-switch IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT4 technology. It features a collector-emitter voltage (VCES) of 3300 V and a continuous DC collector current (ICDC) of 2400 A at a case temperature of 105 °C. The module incorporates an AlSiC base plate for enhanced thermal cycling capability and includes an integrated emitter-controlled diode. Key electrical parameters include a typical saturation voltage (VCE,sat) of 2.4 V at 25 °C and a maximum repetitive peak collector current (ICRM) of 4800 A.

Feature Summary

• High short-circuit capability and high DC stability
• Low switching losses with low gate charge
• Positive temperature coefficient for VCE,sat
• Robust mechanical construction with isolated base plate

Applications

• High-power converters
• Medium-voltage converters
• Motor drives
• Traction drives
• UPS systems

Procurement Notes

Verify the specific ordering suffix BPSA1 against official documentation to confirm packaging details and compliance status. Ensure that the component meets all relevant qualification standards for industrial applications as defined by IEC 60747, 60749, and 60068 before integration into final designs.

Selection Notes

Select this module for applications requiring high power density and robust performance in traction or industrial environments. Consider the thermal resistance values and mounting torque specifications during system design to ensure optimal heat dissipation and mechanical integrity under high current conditions.

Part Context

This component belongs to the IHM-B module family, designed for high-power applications. It represents part of Infineon's IGBT4 - E4 series, which offers improved performance over previous generations. The module is specifically qualified for both industrial and traction sectors, providing a reliable solution for demanding power conversion tasks.

Replacement Considerations

Check for direct substitutes within the same IHM-B family or other IGBT4 variants with compatible voltage and current ratings. Verify pinout compatibility and thermal characteristics when considering alternative models from the manufacturer or other suppliers.
