FZ400R17KE3S4HOSA1

Overview

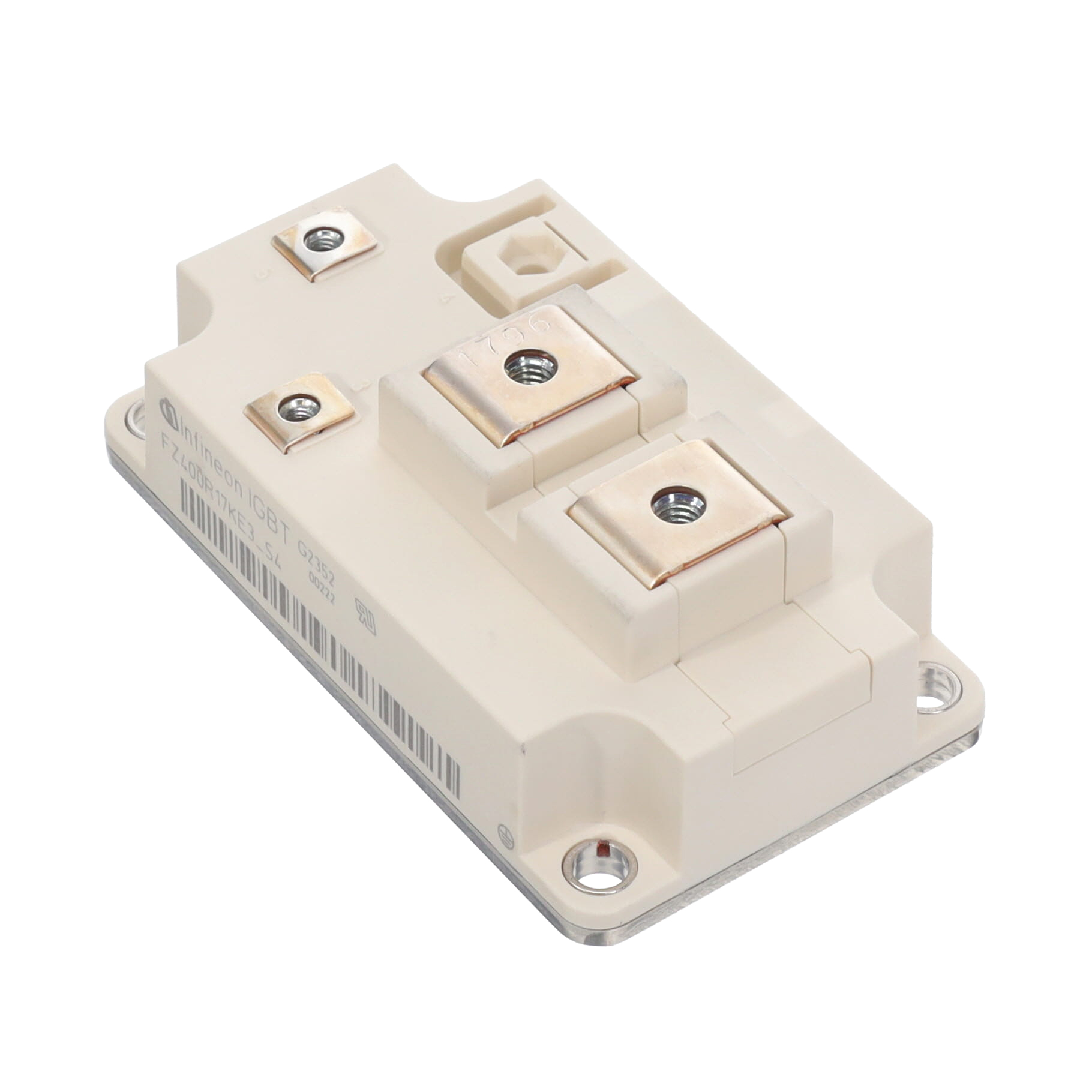

The FZ400R17KE3S4HOSA1 is a single IGBT module from Infineon Technologies, part of the TRENCHSTOP IGBT3 - E3 series. It features a maximum collector-emitter voltage (VCEO) of 1.7 kV and a continuous collector current of 620 A at 25°C. The saturation voltage is 2 V, with a power dissipation rating of 2.25 kW. Operating within a temperature range of -40°C to +125°C, it utilizes screw mount installation in a 62 mm package.

Feature Summary

• Single switch configuration for high-power applications
• TRENCHSTOP IGBT3 technology for optimized switching performance
• Robust thermal management capabilities up to 2.25 kW dissipation

Applications

• Industrial motor drives
• Uninterruptible power supplies (UPS)
• Induction heating systems

Procurement Notes

Verify the exact suffix against official datasheets, as standard listings often show FZ400R17KE3 or FZ400R17KE3HOSA1. Confirm RoHS compliance status and specific packaging quantities directly with the manufacturer or authorized distributors before ordering.

Selection Notes

Select this module for applications requiring 1.7 kV blocking voltage and high current handling. Ensure the cooling system supports the 2.25 kW power dissipation. Compare with FZ400R12KE3 for lower voltage requirements or FZ600R17KE3 for higher current needs within the same package footprint.

Part Context

This component belongs to the TRENCHSTOP IGBT3 family, designed for medium to high-power industrial applications. It shares the 62 mm C-Series module form factor with other variants like FZ600R17KE3, allowing for standardized mechanical integration in existing designs while offering specific electrical characteristics for 1.7 kV systems.

Replacement Considerations

FZ400R17KE3 and FZ400R17KE3HOSA1 are confirmed equivalent part numbers with identical electrical specifications and pinouts. Verify if the S4 suffix indicates a specific internal revision or packaging variant that requires validation against the target application's compatibility requirements.
