Product Detailed Parameters
- Description：IGBT MOD 6500V 600A 2400W
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：3.4V @ 15V, 600A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-50°C ~ 125°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：6500 V
- Current - Collector (Ic) (Max)：600 A
- Power - Max：2400 W
- Current - Collector Cutoff (Max)：5 mA
- Input Capacitance (Cies) @ Vce：160 nF @ 25 V
Download product information
Overview

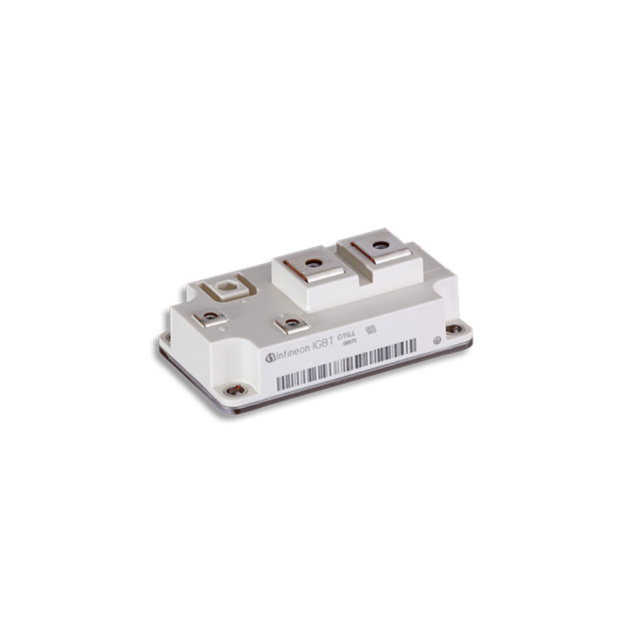

The FZ600R65KE3NOSA1 is a single IGBT module from Infineon Technologies, rated at 6500 V collector-emitter voltage and 600 A continuous collector current. It features a maximum saturated collector-emitter voltage of 3.4 V at 600 A with a 15 V gate drive. The module has a power dissipation capacity of 2400 W and operates within a junction temperature range of -50°C to +125°C. It utilizes silicon technology and is housed in a base-mounted module package.
Feature Summary
- High-voltage capability for demanding industrial applications
- Robust thermal performance with base-mount design
- Standard gate input configuration
Applications
- Industrial power conversion systems
- Medium to high-power motor drives
- Uninterruptible power supplies (UPS)
Procurement Notes
Verify the complete part number including the NOSA1 suffix against official Infineon documentation to ensure correct revision and compliance status. Confirm RoHS3 certification requirements with the supplier. Check for any specific export control classifications or additional documentation needed for procurement depending on the destination region.
Selection Notes
Select this module for applications requiring 6500 V blocking voltage and up to 600 A current handling. Ensure the cooling system can manage the 2400 W power dissipation. Verify that the gate drive circuit provides the necessary 15 V turn-on voltage to achieve the specified saturation characteristics. Consider the operating temperature range limits during system design.
Part Context
This component belongs to the Trenchstop IGBT3 - E3 series by Infineon Technologies. It is designed for high-reliability industrial applications. The part is distinct from lower voltage variants like the FZ600R17KE3 and higher current models such as the FZ1000R65KE4NPSA1 within the same manufacturer portfolio.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Consult Infineon's official replacement guides or distributor cross-reference lists for potential alternatives.
