GA10JT12-263

Single FETs, MOSFETs Overview

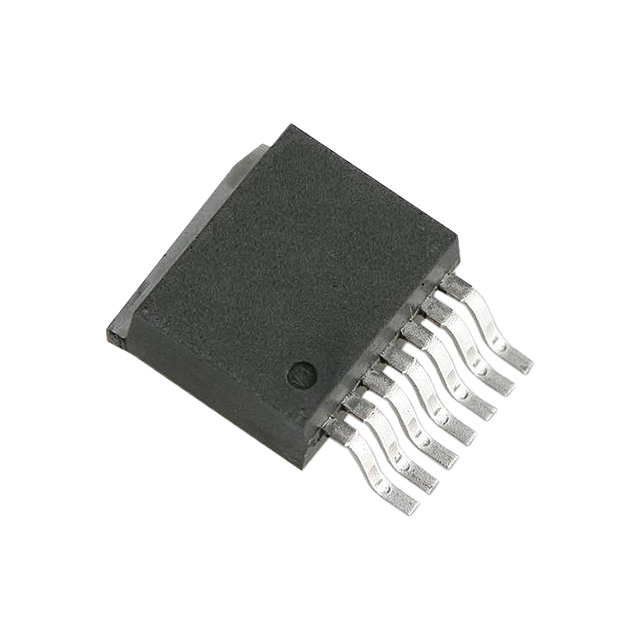

The GA10JT12-263 is a normally-off Silicon Carbide Junction Transistor (SJT) manufactured by GeneSiC Semiconductor. It features a 7L D2PAK (TO-263-7L) surface-mount package with an integrated tab for thermal management. The device supports a drain-source voltage of 1200 V and delivers a continuous drain current of 25 A at 25°C case temperature, or 10 A at 150°C. Its on-resistance is specified at 100 mΩ at 25°C, rising to 175 mΩ at 175°C under a 10 A gate drive condition. The component operates up to a maximum junction temperature of 175°C and withstands short-circuit events exceeding 20 µs.

Single FETs, MOSFETs Feature Summary

• Gate oxide-free silicon carbide construction ensures robust switching performance and high reliability.
• Positive temperature coefficient of on-resistance facilitates safe parallel operation without current hogging.
• Optional dedicated gate return pin minimizes source inductance coupling for improved high-speed switching efficiency.
• Compatible with standard Si MOSFET and IGBT gate drive ICs for simplified system integration.

Single FETs, MOSFETs Applications

• Down hole oil drilling and geothermal instrumentation
• Hybrid electric vehicles (HEV)
• Solar inverters and switched-mode power supplies (SMPS)
• Power factor correction (PFC) circuits
• Induction heating and motor drives

Single FETs, MOSFETs Procurement Notes

Verify the specific revision status of the datasheet before finalizing designs, as electrical characteristics may be updated. Confirm that the TO-263-7L footprint matches the target PCB layout, paying attention to the distinct functions of the Gate Return pin versus Source pins. Ensure the design accounts for the required steady-state gate current based on the expected load conditions and DC current gain variations across the operating temperature range.

Single FETs, MOSFETs Selection Notes

Select this component when high-voltage blocking capability and high-temperature operation are critical requirements. The SJT technology offers lower conduction losses compared to traditional silicon devices. Designers must account for the current-driven nature of the gate, which differs from voltage-driven MOSFETs. Consider the available driving topologies, such as TTL logic or high-speed boost circuits, to optimize switching speed and minimize gate drive power consumption during operation.

Single FETs, MOSFETs Part Context

This part belongs to the GeneSiC Semiconductor SJT family, utilizing silicon carbide material science to achieve superior thermal and electrical performance over conventional silicon transistors. The GA10JT12 series provides a rugged alternative for high-power applications where efficiency and thermal stability are paramount. The specific -263 suffix denotes the 7L D2PAK package variant designed for surface-mount assembly with enhanced thermal dissipation capabilities.

Single FETs, MOSFETs Replacement Considerations

Direct cross-replacement requires verifying pinout compatibility, specifically the separation of the Gate Return pin. Evaluate the driving circuitry to ensure it can supply the necessary steady-state gate current rather than just voltage levels. Thermal resistance and package dimensions must match the existing heatsink and PCB constraints to maintain system reliability.
